12. 4 x 5 Distributor Platform (Optional)

94

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

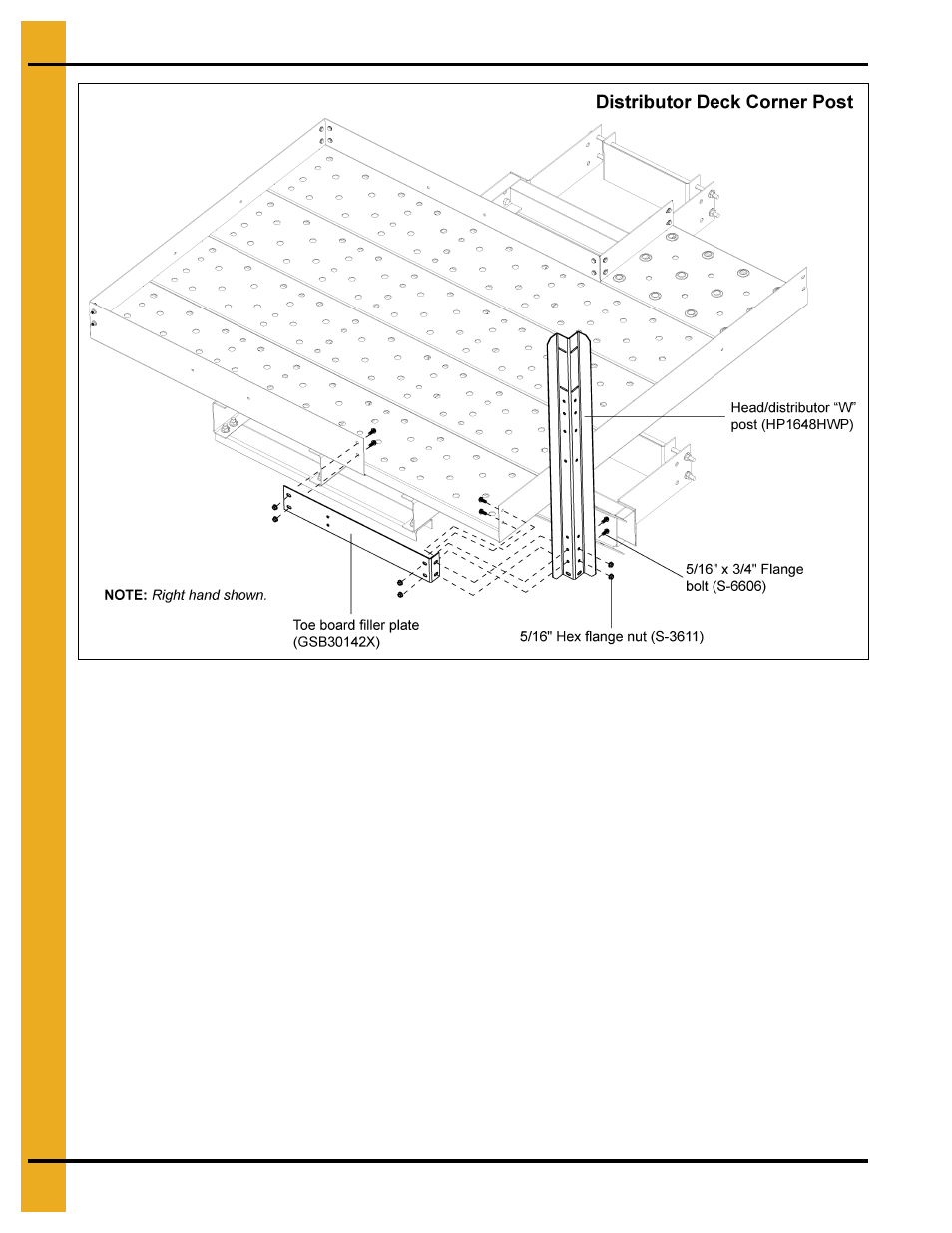

Figure 12G Distributor Platform Corner Post

Install Handrail Posts - Non Entrance Side

1. Install the remaining two (2) “W” corner posts to the corners on the non-entrance side of the decking

using four (4) 5/16" x 3/4" flange bolts and nuts per post.

2. Install platform post (HP1648HCP) to the inside corner of the decking near the entrance to the

platform using four (4) 5/16" x 3/4" flange bolts and nuts.

3. Attach side posts (HP1648HP) to the decking at the entrance to the platform using two (2)

5/16" x 3/4" flange bolts and nuts per post.
