13. 6 x 6 Distributor Platforms
106
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Platform Post

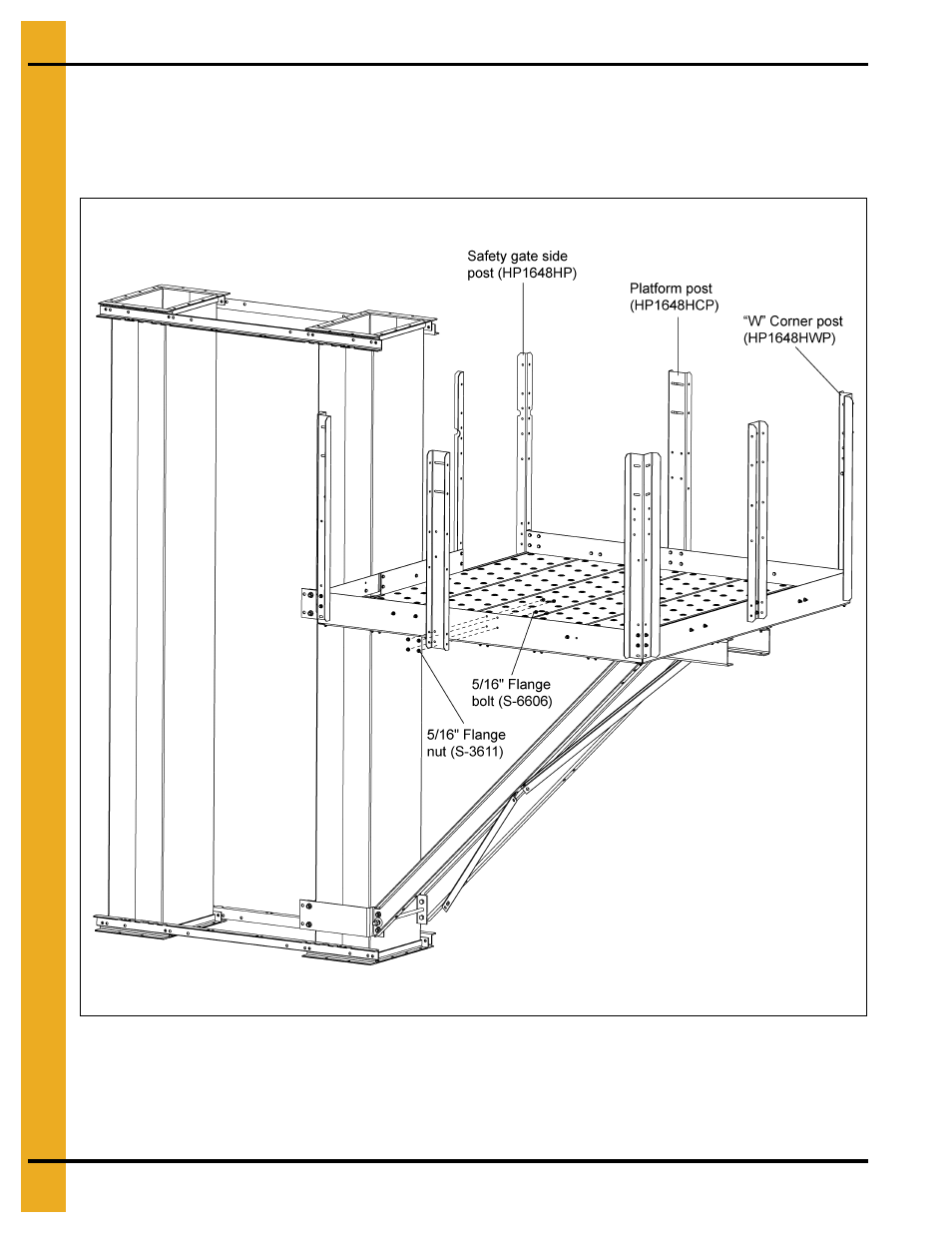

shows the assembly of three (3) “W” corner posts (HP1648HWP), three (3) platform posts
(HP1648HCP) and two (2) safety gate side posts (HP1648HP). This must all be assembled using
5/16" hardware.
Figure 13H
