7. Rest Platform

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

37

Rest Platform Cross Channel to Rest Platform Mounting Channels

1. Place the rest platform cross channels between the rest platform mounting channels and connect

those using 3/8" x 3/4" hex bolts.

(See Figure 7F.)

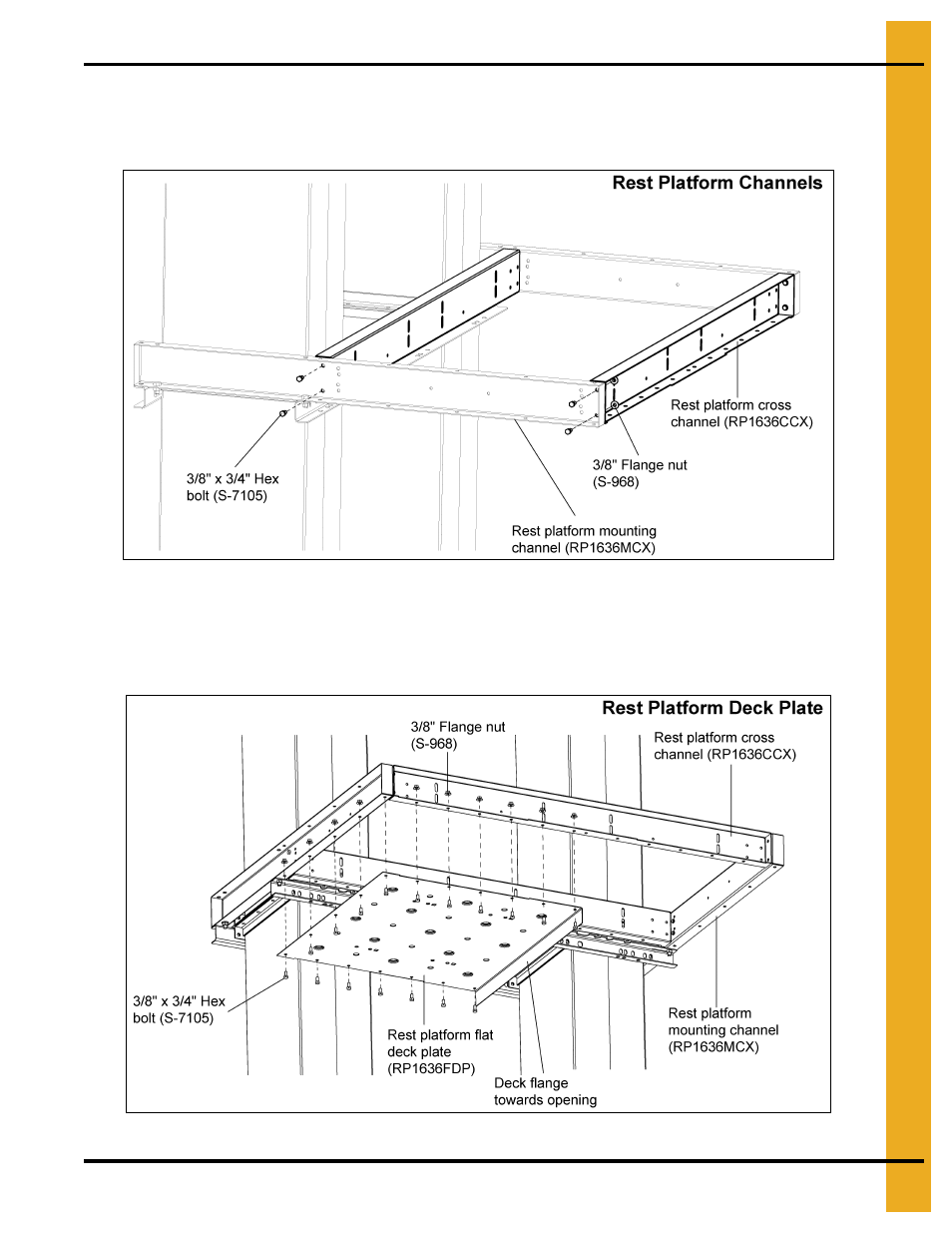

Figure 7F Rest Platform Cross Channel to Rest Platform Mounting Channels

2. Attach rest platform deck to the bottom of the rest platform mounting channels and rest platform

cross channels, using 3/8" x 3/4" hex bolts. Bolt heads should be installed against the deck plate.

(See Figure 7G.)

NOTE: The deck plate can be mounted on either the right or left side, but the flange

must be mounted towards the opening.

Figure 7G Deck Plate
