6. Tie Angles, Ladders and Safety Cages

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

23

Install Boot Ladder Section

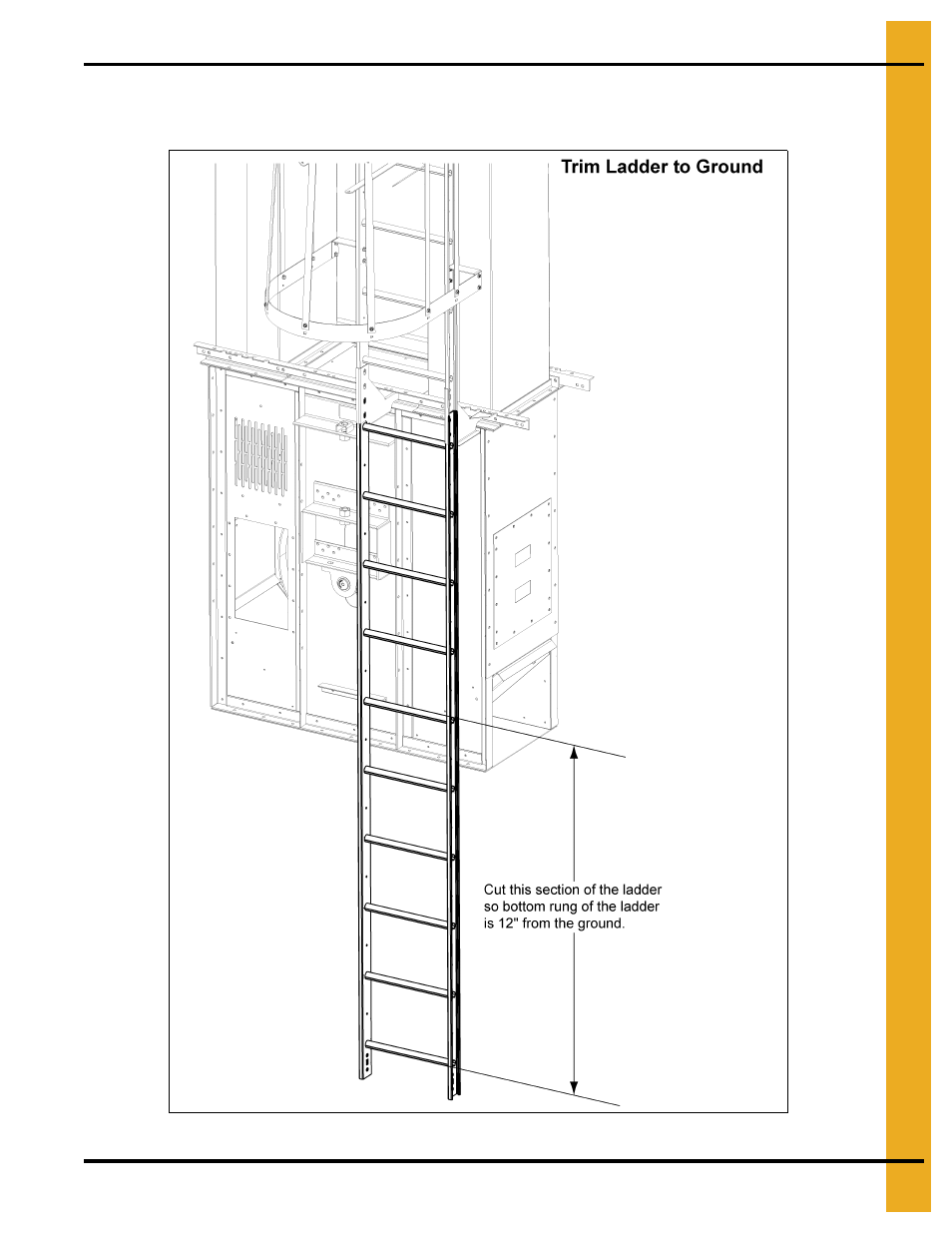

1. Trim a 10' ladder section to sit so that the first ladder rung is 12" from the ground.

(See Figure 6E.)

Figure 6E
