8. 30"-36" Head Platform Right Hand Drive
50 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Attach Deck A to Hatch Cover Plate
NOTE: Only two (2) side of deck plate are attached at this time.
1. Locate pre-assembled Deck A. This plank consists of the two (2) hatch openings and is labeled with
holes etched with the letter A.
2. Orient Deck A so the hatch cover plate is at the up-leg end of the deck.
3. The hatch will be located at the discharge end and will remain open at this time. A hatch door will be
attached to Deck A later and should NOT be installed at this time.
NOTE: ONLY connect the hatch filler plate along two (2) of the four (4) sides of the plate.
4. The holes perpendicular to the length of Deck A should remain open at this time as they will serve to
connect the hatch cover plate and Deck A to the cross deck support channel.
5. Attach the hatch cover plate to Deck A using (8) eight 3/8" x 1" carriage bolts (S-3585) with flange
nuts (S-10028) and torque to 30 ft/lbs. (See Figure 8F.)

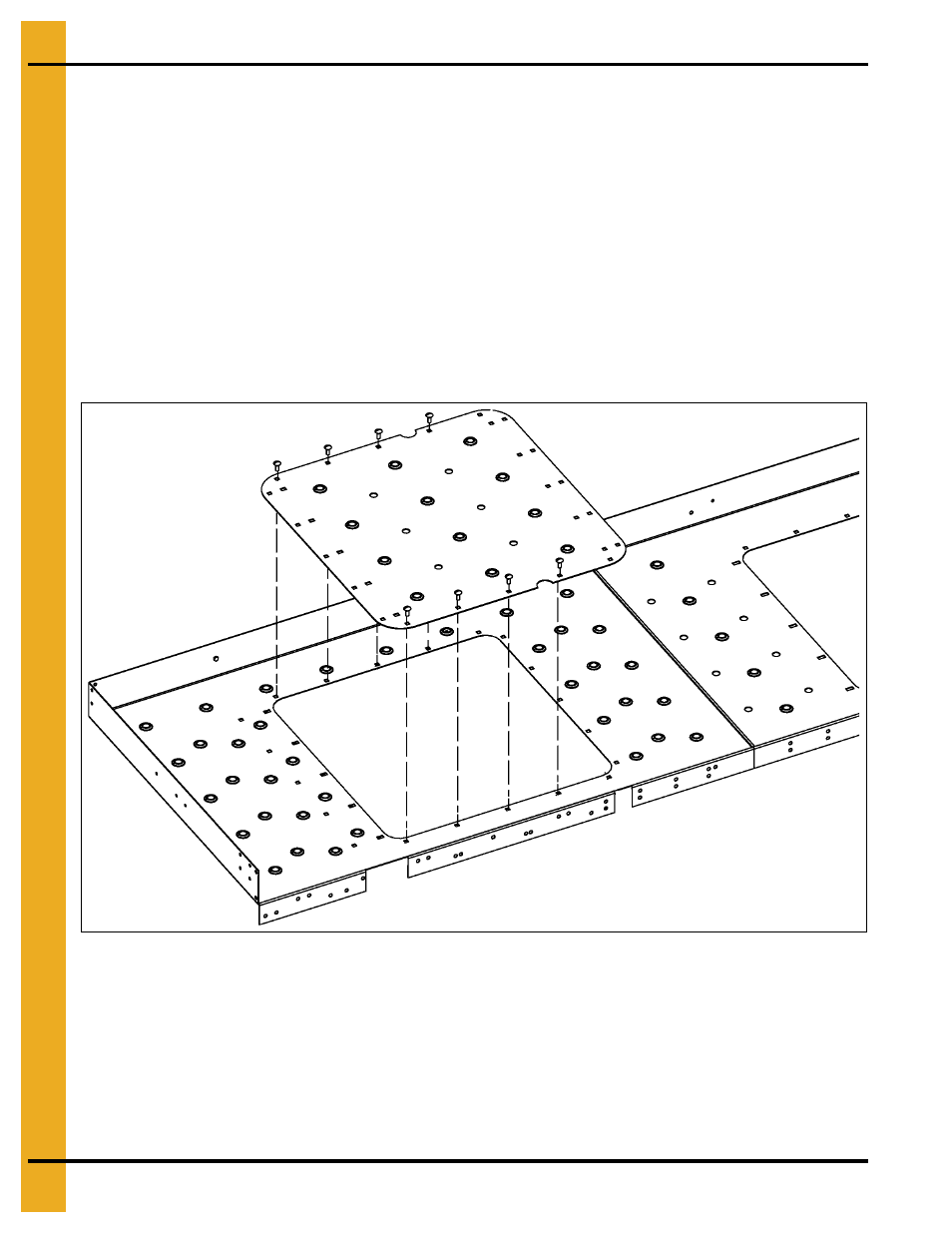

Figure 8F Hatch at Up-Leg End
