9. 30"-36" Head Platform Left Hand Drive

72

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

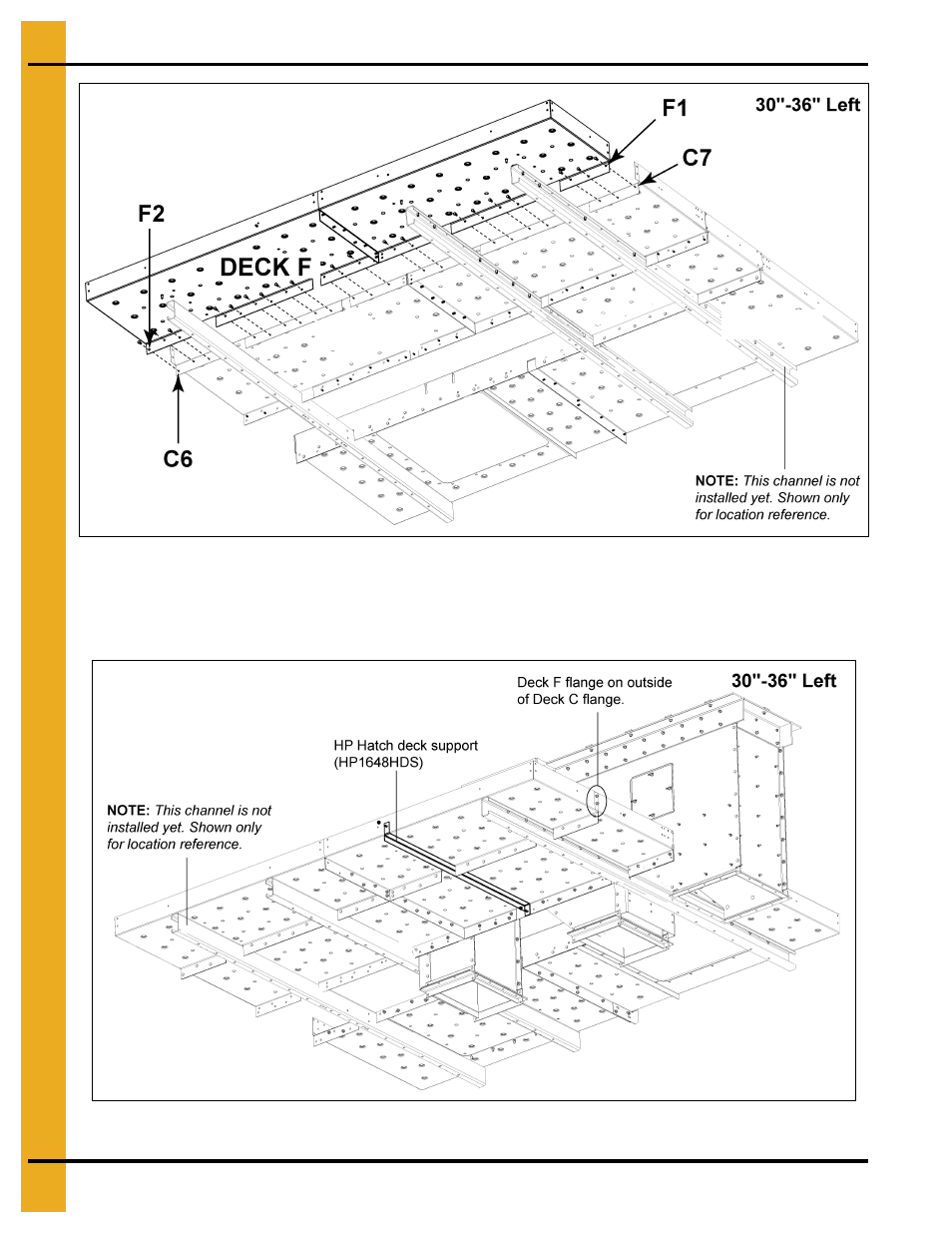

Figure 9M Deck F to Deck C

7. Install the head platform hatch deck support (HP1648HDS) under Deck C and Deck F using

3/8" x 3/4" bolt (S-7105) and nut.

(See Figure 9N.)

NOTE: You may need to remove a bolt from

the toe board if one was installed in this location.

Figure 9N

DECK C

DECK A
