7. Rest Platform

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

35

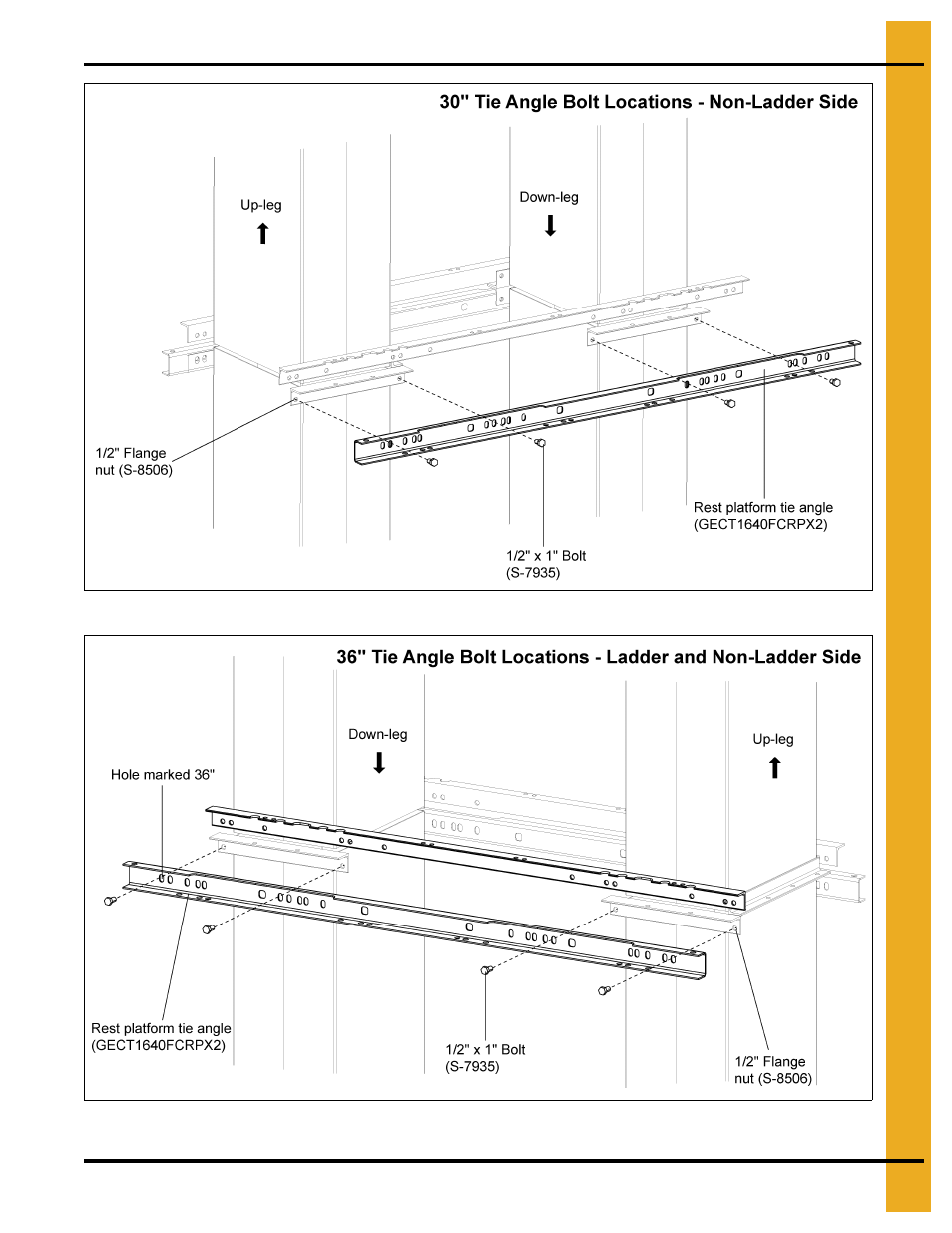

Figure 7C 30" Rest Platform Tie Angle Bolt Locations - Non-Ladder Side

Figure 7D 36" Rest platform tie angle bolt locations - Ladder and

non-ladder side have the same bolt hole locations.
