6. Tie Angles, Ladders and Safety Cages

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

21

Attach Boot Ladder Support Brackets and Boot Ladder Section

NOTE: Refer to ladder layout images,

Figure 5A-5G

on Pages 12-18

.

NOTE: Ladders can be mounted to either the up-leg or down-leg end of the elevator depending on the

height and head platform hatch location.

NOTE: Both up-leg and down-leg bracket locations are shown in this manual, however, only one will

actually be installed based on owner preference and layout of the elevator.

Depending on the height and head platform hatch location. Ladder can be mounted to either the up-leg or
the down-leg side, refer to ladder layout

Figure 5A-5G

on Pages 12-18

. NOTE: Both up-leg and down-leg

bracket locations are shown, but only one side will be used.

1. Use the holes indicated based on bucket elevator size in

Figure 6C

and attach ladder support

brackets to boot tie angle using 3/8" x 1" hex bolts. Remember to double check if the ladder should
start on the up-leg side or the down-leg side.

(See Figure 6C below

and Figure 6D on Page 22.)

a. 30"-36" Down-Leg Bracket: Use 3/8" x 1" hex bolts to attach the ladder support brackets to the

boot tie angle using the holes indicated in

Figure 6C

. Note the outer bracket uses the first set of

holes on the outside.

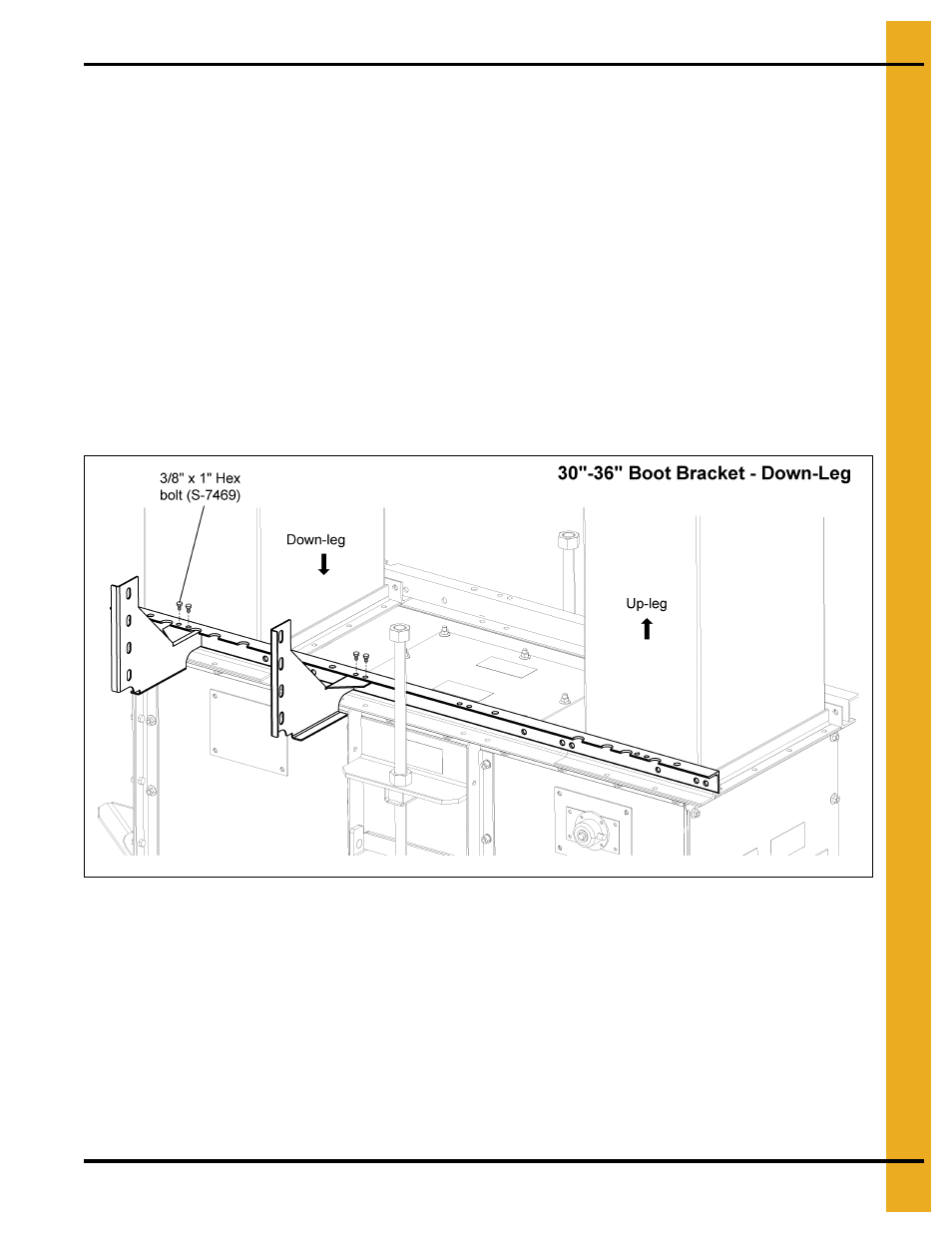

Figure 6C 30"-36" Boot Bracket Down-Leg
