34

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

7. Rest Platform

Chapter 7: Rest Platform

Rest Platform Tie Angles to Bucket Elevators

1. Install rest platform tie angles to the lower trunking on both the ladder side and non-ladder side of the

trunking. Use 1/2" x 1" bolts through the bolt holes indicated for the bucket elevator size being
installed.

(See Figure 7A.)

NOTE: Bolt hole starting location on left side of tie angle is marked with the bucket size.

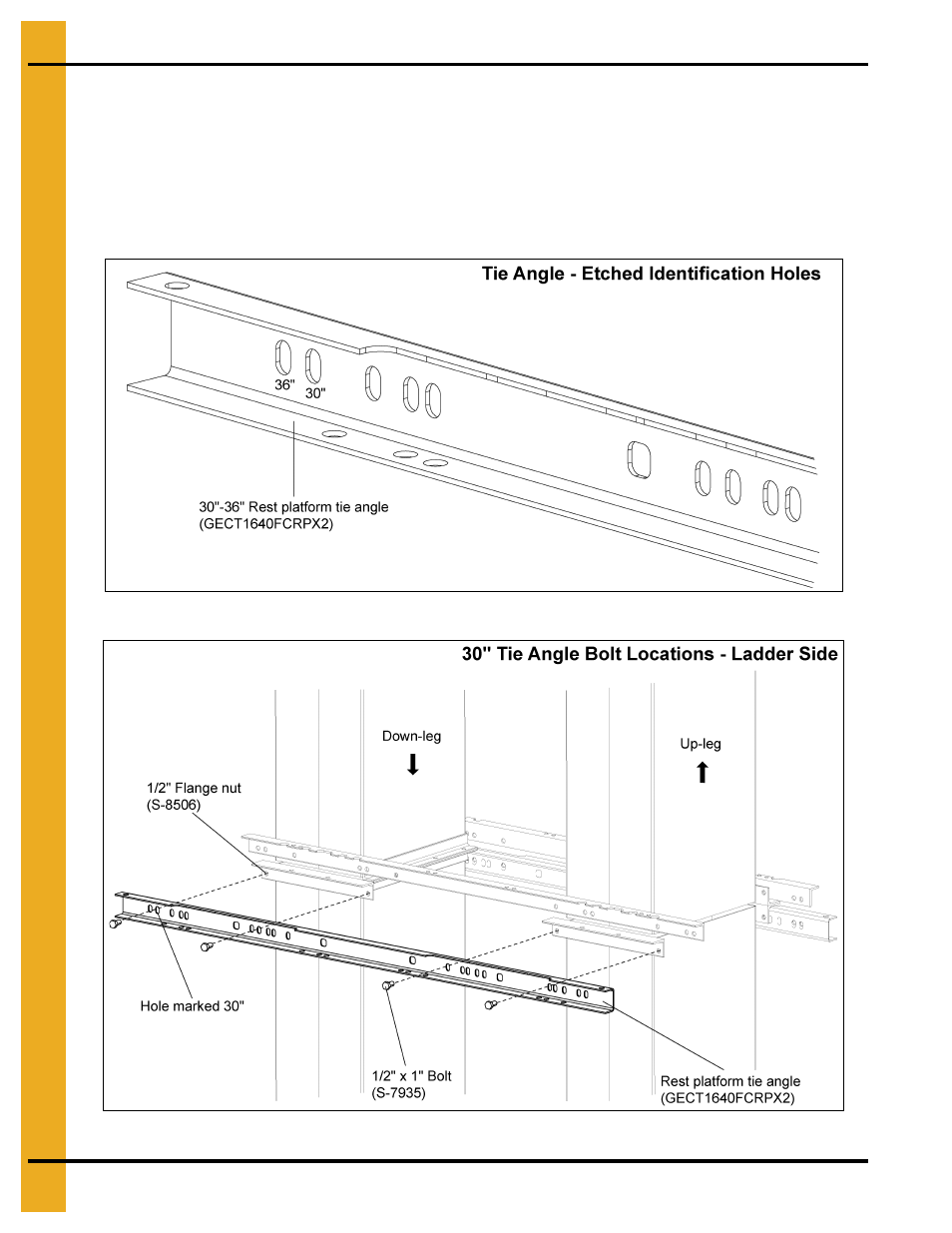

Figure 7A Tie Angle with Etched Numbers

Figure 7B 30" Rest Platform Tie Angle Bolt Locations - Ladder Side
