12. 4 x 5 Distributor Platform (Optional)

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

97

Install Upper Handrails

1. Attach handrails to the posts using four (4) 5/16" x 3/4" flange bolts and nuts per handrail.

(See Figure 12K.)

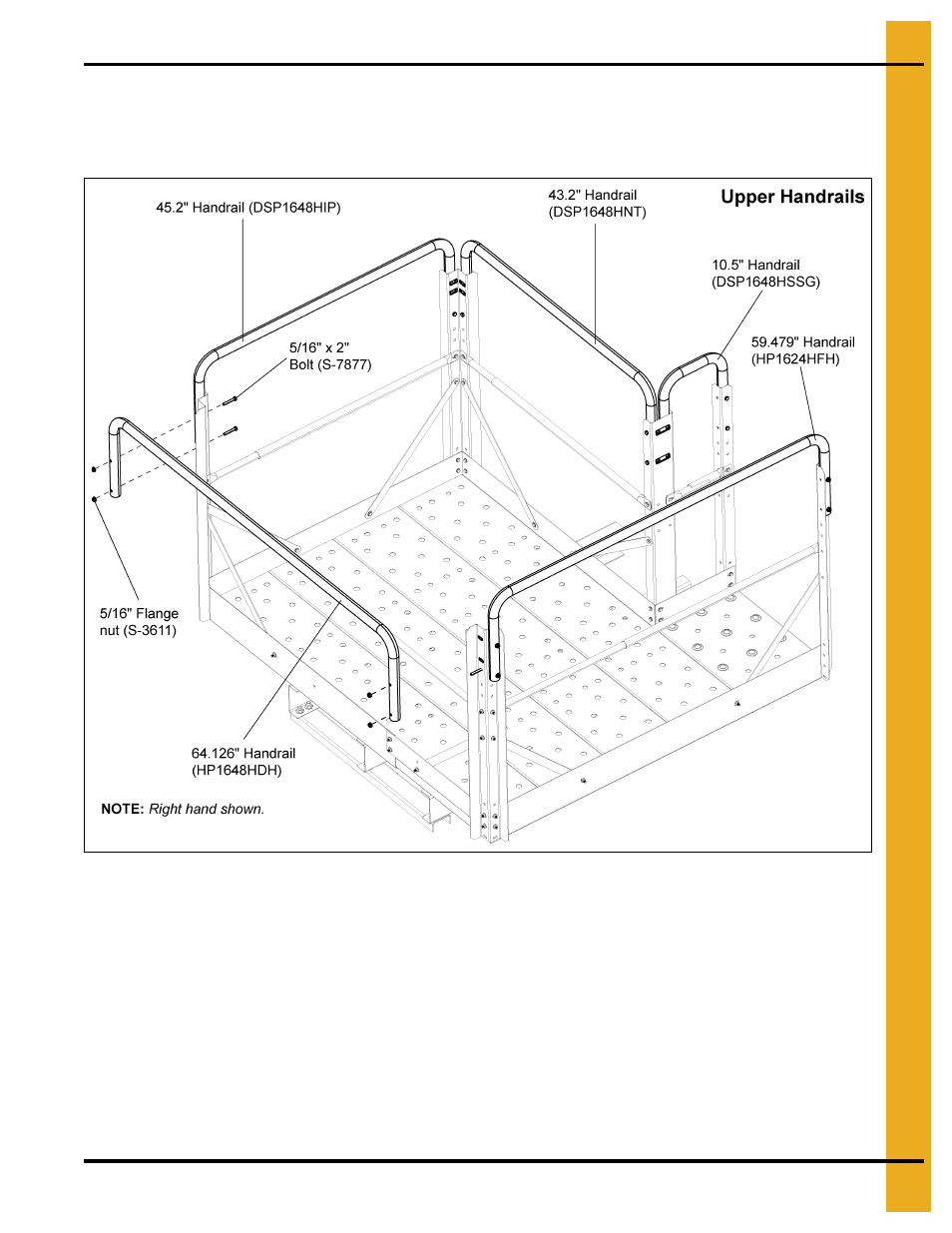

Figure 12K
