13. 6 x 6 Distributor Platforms
104 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Platform Decking
Attach the floor deck panels to the support channels. Then attach end toe boards (DSP36000X) to the
platform decking (DSP36004) with the 5/16" hardware provided. Add extra toe board plates, after all
pieces have been attached and positioned properly, tighten all hardware.
(See Figure 13F below and
Figure 13G on Page 105.)

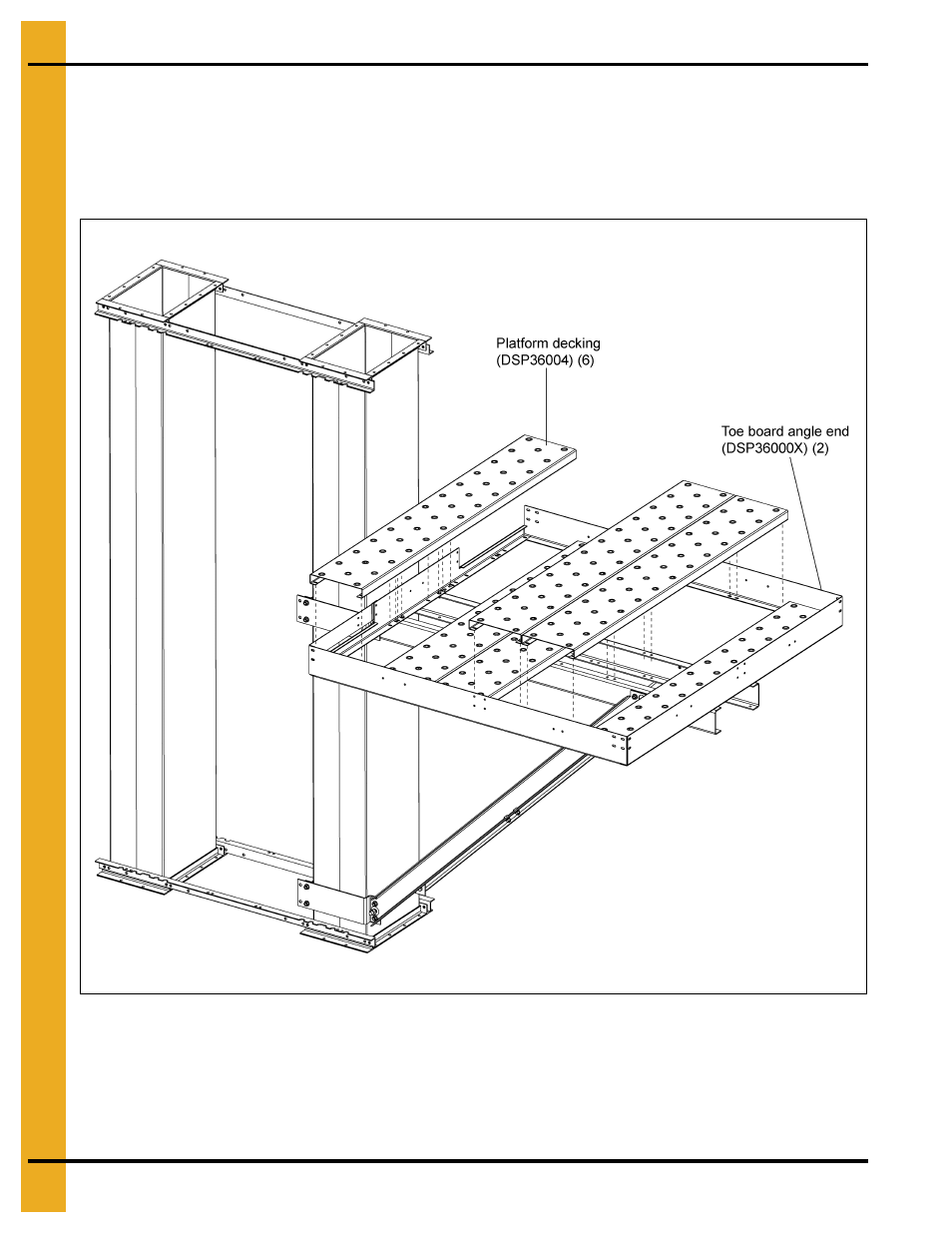

Figure 13F
