8. 30"-36" Head Platform Right Hand Drive
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series 59
5. Connect Deck E to Deck A and Deck C using 3/8" x 3/4" bolts (S-7105) with flange nuts (S-10028).
(See Figure 8P.)
a. A Deck hole A5 to E deck hole E1.
b. A Deck hole A6 to E deck hole E2.
c. C Deck hole C5 to E deck hole E3.
d. C Deck hole C4 to E deck hole E4.

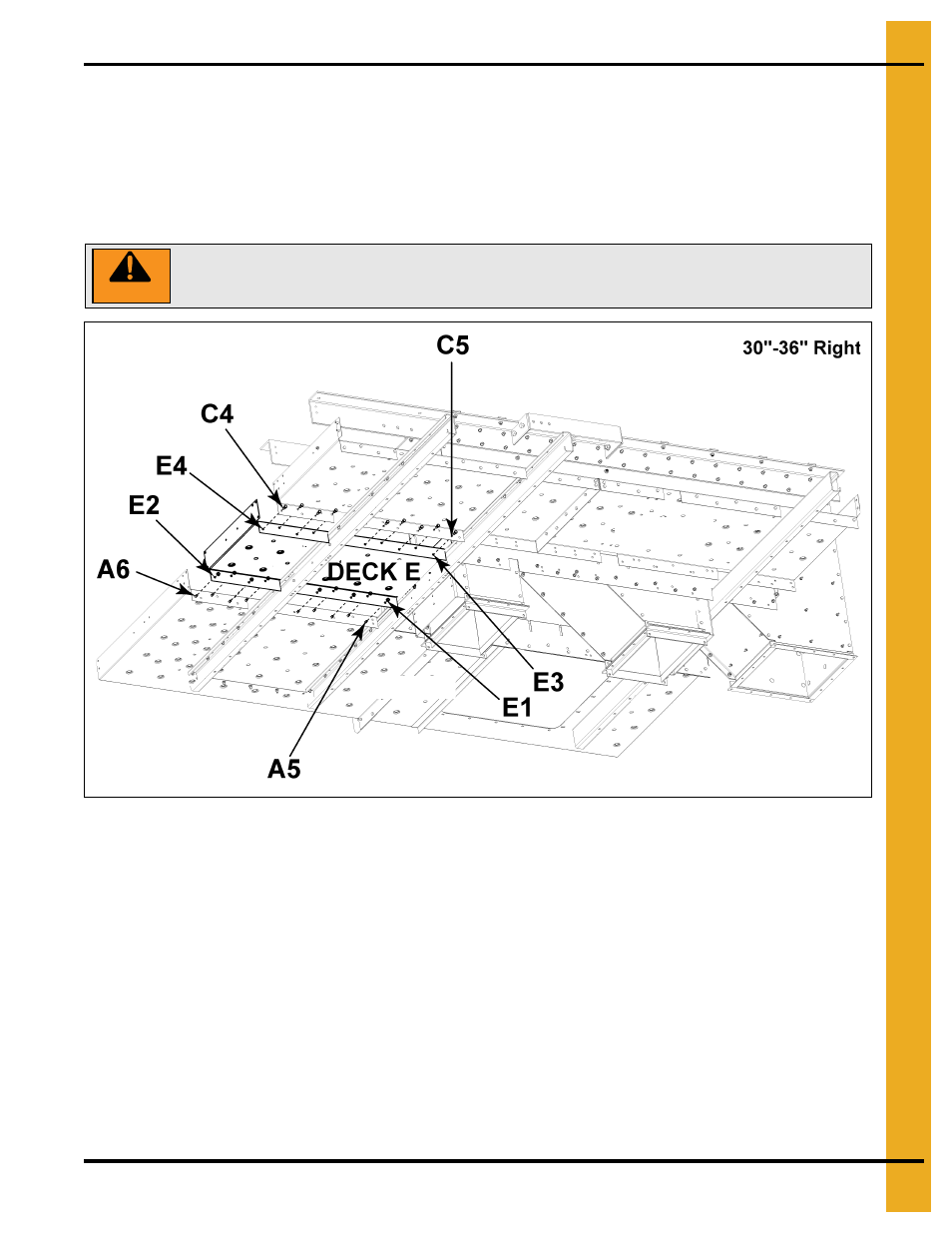

Figure 8P
WARNING
After decking is completely assembled, make sure to go back and tighten all bolts
and nuts to the proper torque rating.
DECK C
DECK A
