11. Install Hatch
88 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

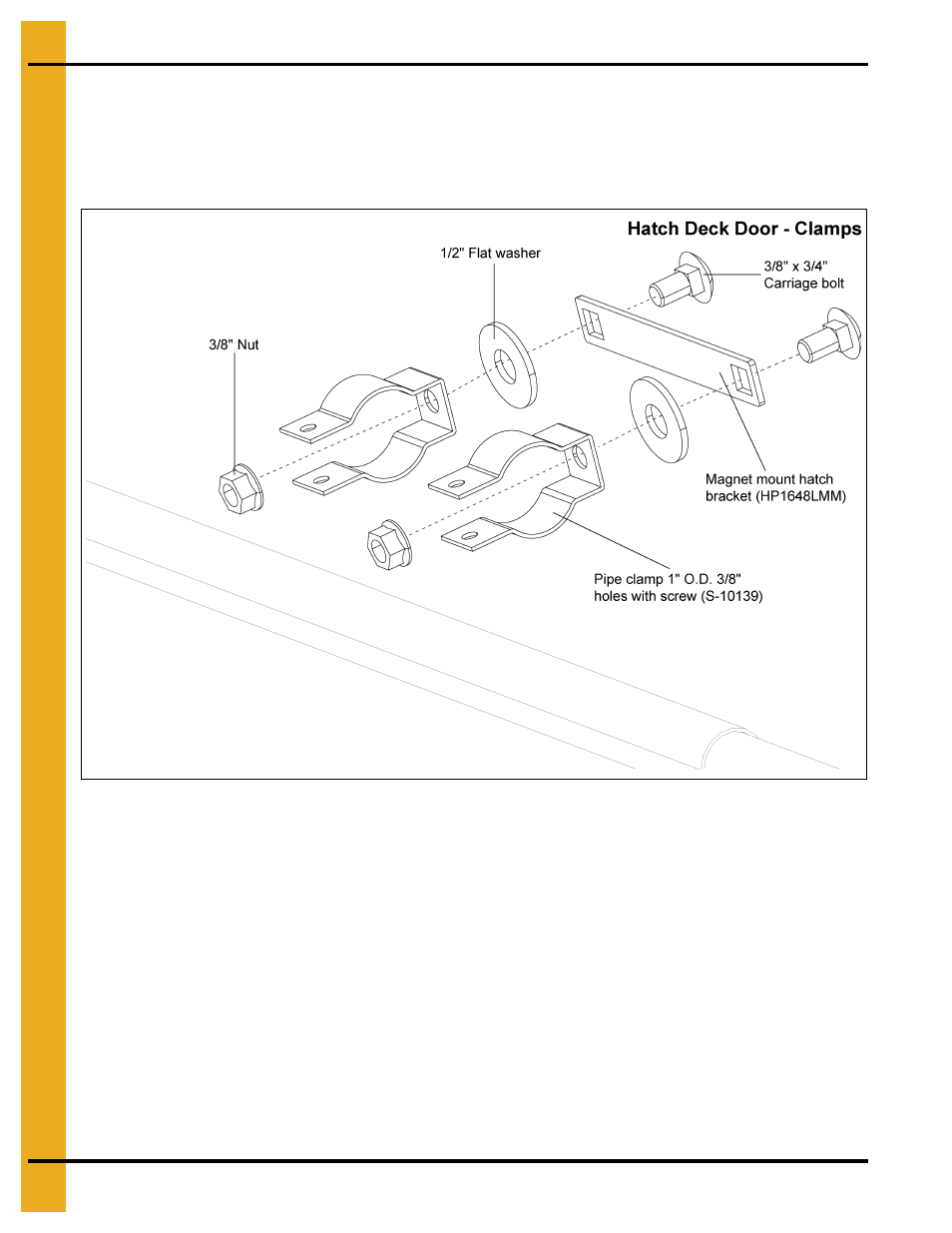

7. Assemble pipe clamps (S-10139) to the magnet mount hatch bracket (HP1648LMM). Insert
3/8" x 3/4" carriage bolts through the magnet mount hatch bracket, 1/2" flat washer and pipe clamp.
Fasten with 3/8" nut.
(See Figure 11E.)
8. Attach pipe clamp around intermediate handrail and fasten loosely with bolts. Open hatch plate and
slide clamp along handrail until it lines up with the magnets on the hatch plate. Tighten clamp to rail.
Figure 11E
