10. 30"-36" Head Platform Post, Rails and Bracing

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

83

Install Upper Handrails

1. Attach handrails to the handrail posts using 5/16" x 2" bolts (S-7877) and hex nuts. Use

Figure 10L

below

Figure 10M.)

for handrail location.

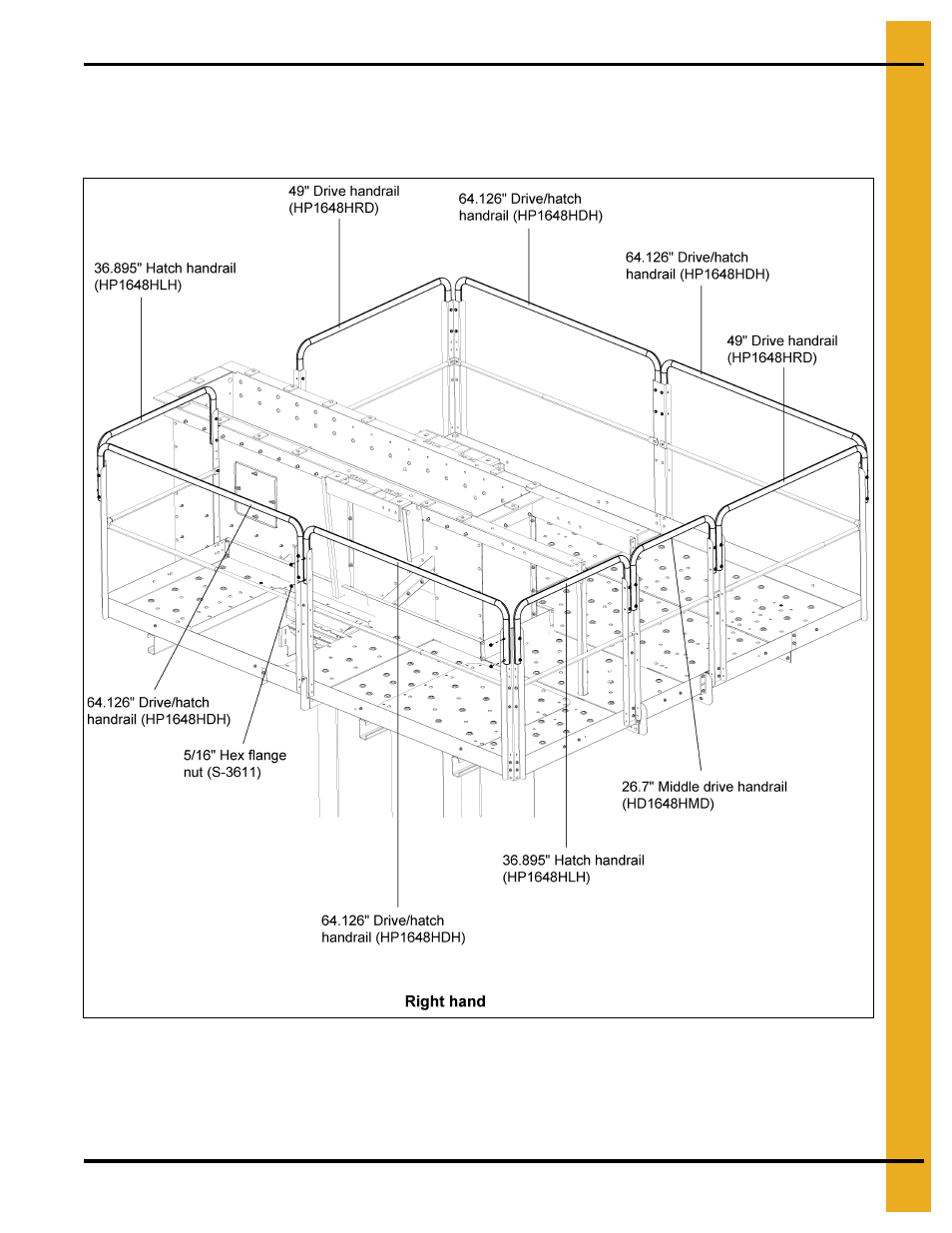

Figure 10L Right Hand Drive Rail Locations
