10. 30"-36" Head Platform Post, Rails and Bracing

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

77

Install Posts

1. Attach two (2) “W” posts (HP1648HWP) to the corner of Deck F using 5/16" x 3/4" bolts (S-6606)

and nuts.

2. Attach platform post (HP1648HCP) and HP handrail support (HP1648HSH) to the middle of Deck F.

Use 5/16" x 3/4" bolts (S-6606) to attach post to deck. Use 5/16" x 3/4" bolts (S-6606) to attach
support bracket, post and deck together.

(See Figure 10D.)

3. Attach platform posts to Deck A and Deck C as shown in

Figure 10D

. Use four (4) 5/16" x 3/4" bolts

(S-6606) and nuts for each post.

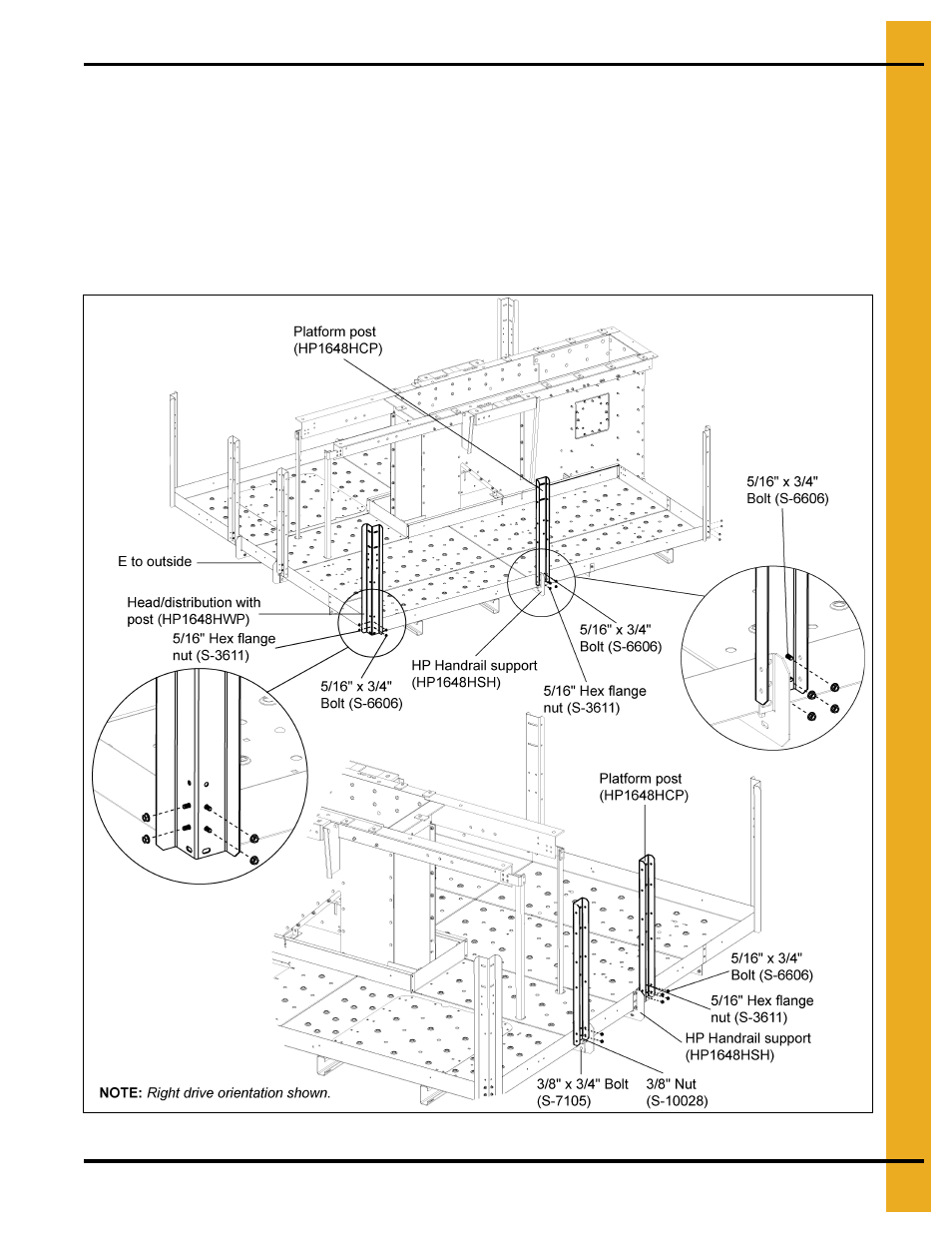

Figure 10D
