Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1849 User Manual
Page 95
12. 4 x 5 Distributor Platform (Optional)
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
95

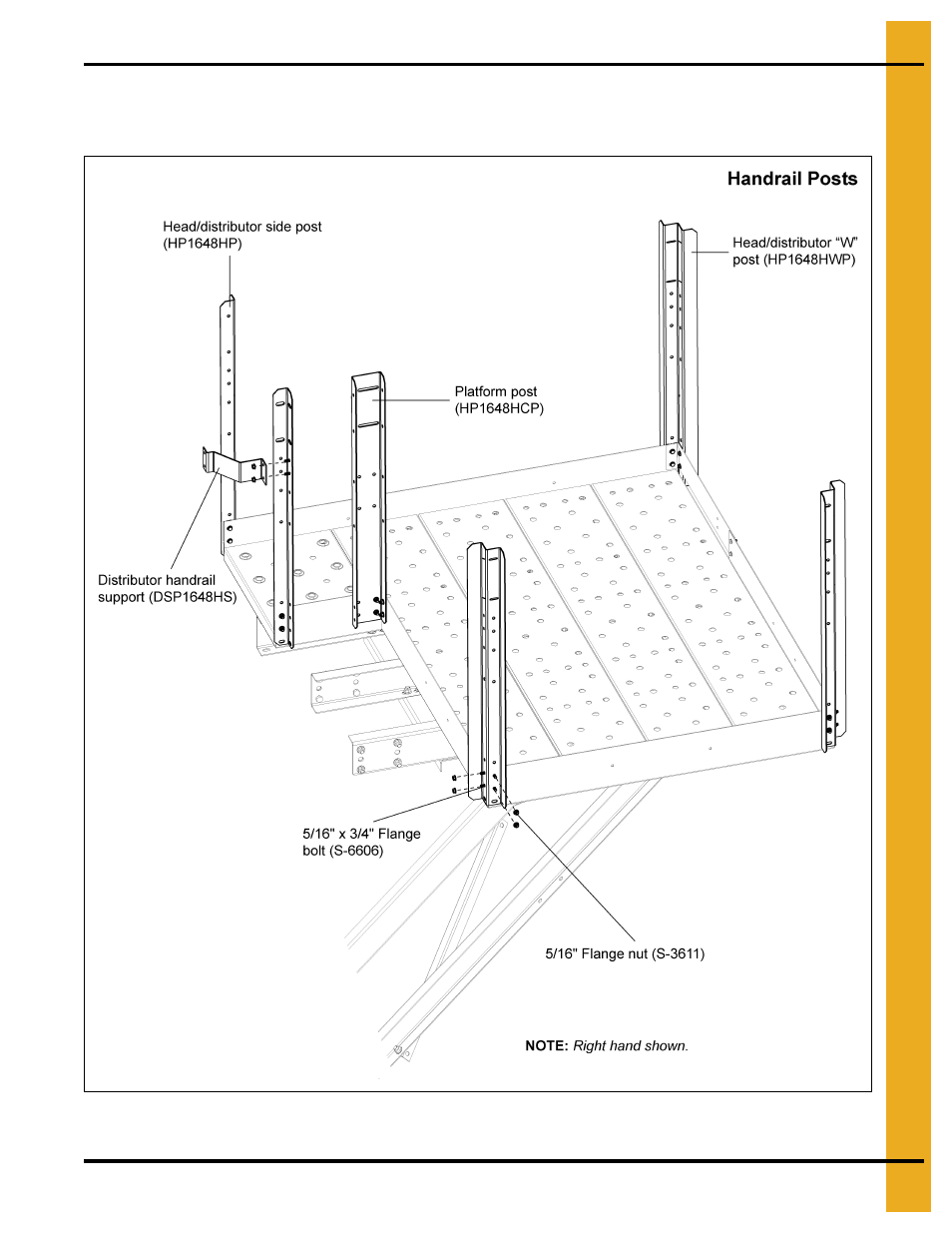

4. Install distributor handrail support to the side post on the inside, located closest to the trunking
through holes 3 and 4 counting from the top of the post. Use two (2) 5/16" x 3/4" flange bolts and nuts
to fasten in place.
Figure 12H
