13. 6 x 6 Distributor Platforms
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
101
Toe Boards
With support assembly attached to trunk and hardware tightened, proceed by attaching the notched toe
board angle (DSP36002X) and toe board angle (DSP36003X) to the top of the support channel using the
5/16" hardware provided. (Leave hardware loose.)

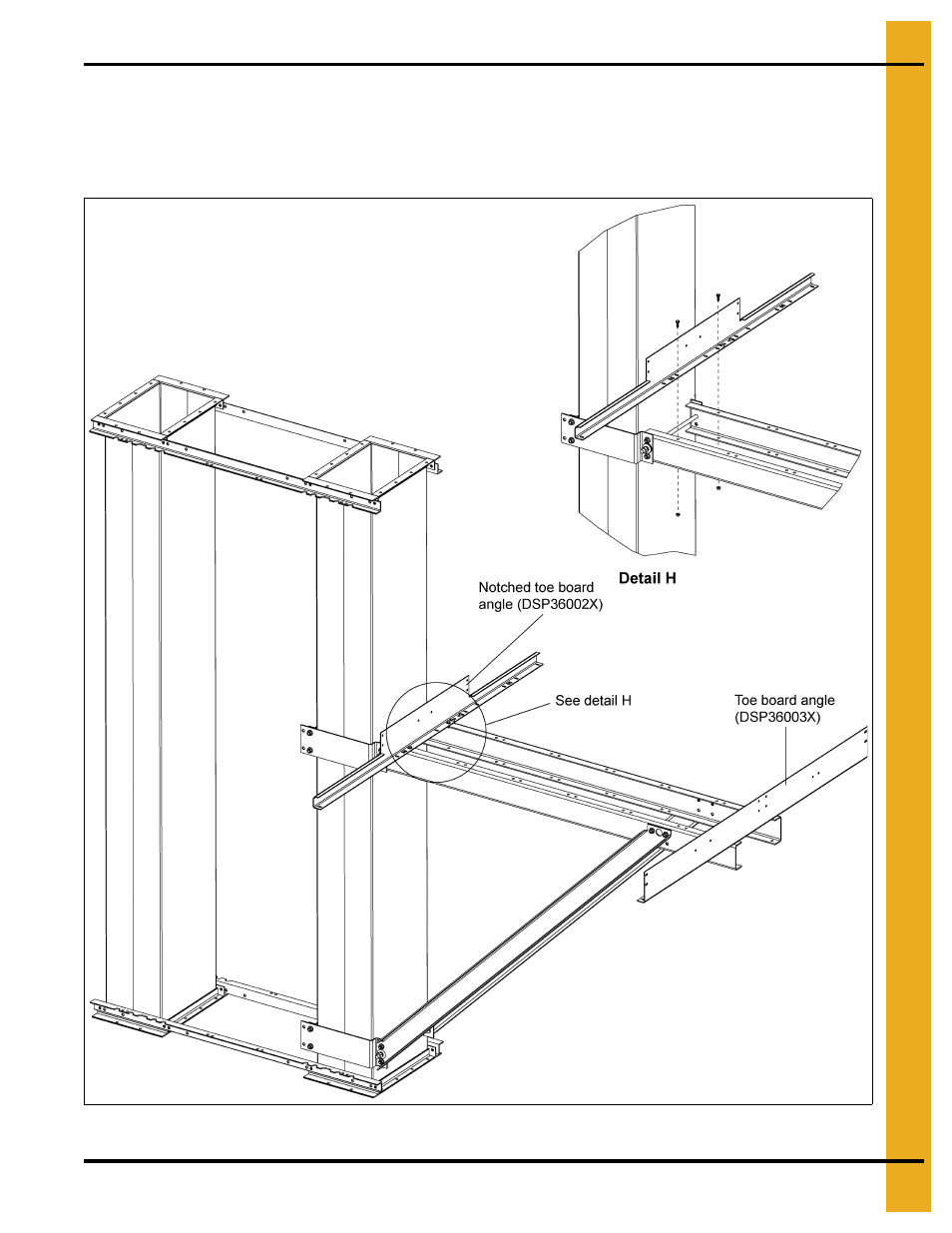

Figure 13C
