13. 6 x 6 Distributor Platforms
108 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Intermediate Handrail
IMPORTANT: For safety purposes, make sure head of bolts are to the inside of platform with nuts on
outside at all connections.
NOTE: The small intermediate handrail (LDR-4088) fits inside of the large intermediate handrail
(LDR-4087). Identify and separate the large and small intermediate handrails.
Trim six (6) large and six (6) small rails by 14" each so that the remaining length of each rail, both small
and large is 22".
(See Figure 13J.)
1. Install these rails across the platform and the opposite side as shown in Figure 13J .
2. Insert one small rail inside of one large rail and telescope the joined rails from the “W” corner post to
the platform post as shown in Figure 13J .
3. Attach to “W” post (corner post) and platform post using nuts (S-3611) and bolts (S-6606). Torque to
standard specifications.

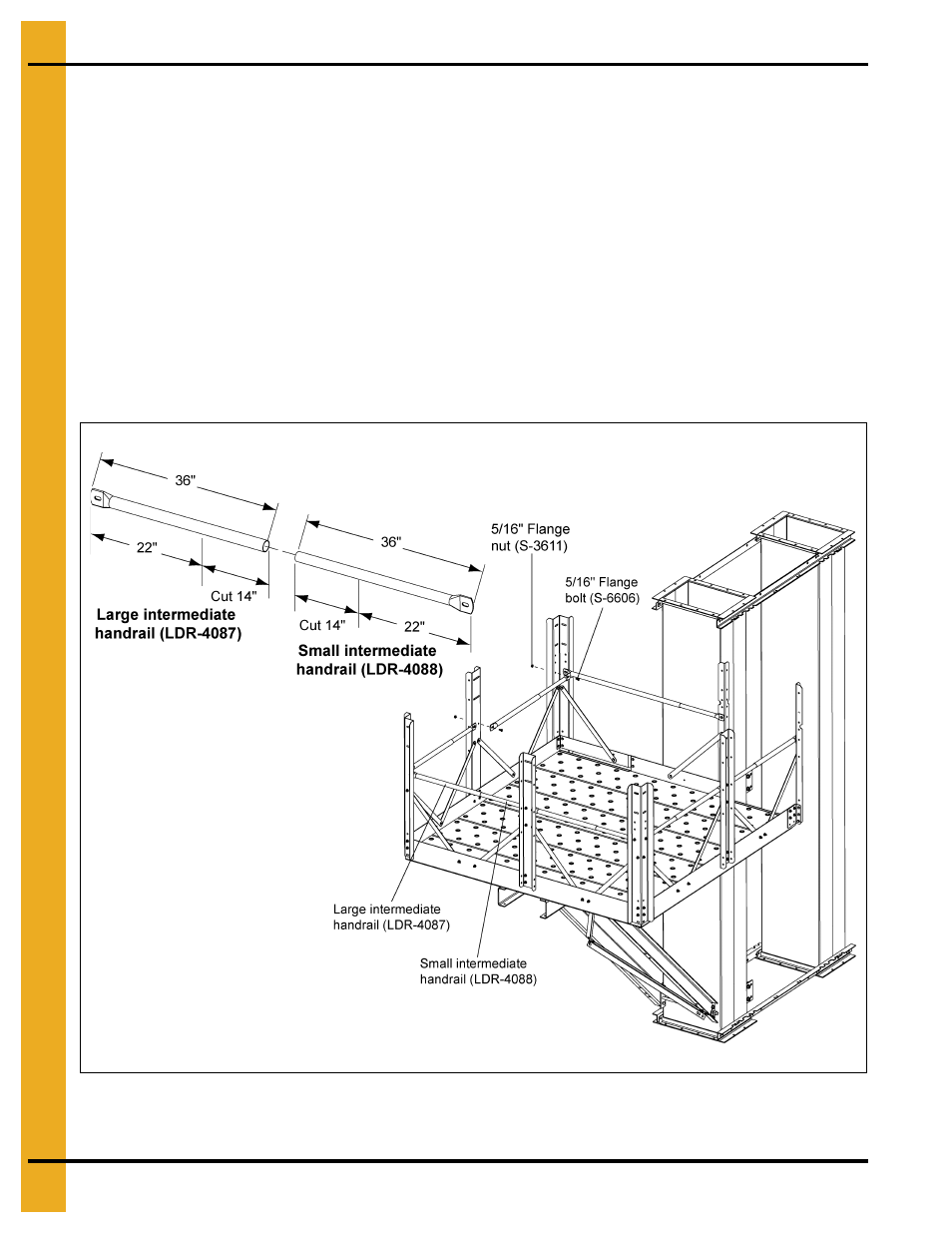

Figure 13J
