9. 30"-36" Head Platform Left Hand Drive
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series 71
Connect Deck F to Cross Deck Support Channels and Deck C
IMPORTANT: Connect all bolts only finger tight until deck is completely assembled and then tighten to
proper torque.
1. Locate pre-assembled Deck F. This deck consists of two (2) planks.
2. Orient Deck F with hole F7 at the discharge end of the lower head and F6 at the up-leg end.
(See Figure 9L.)
3. Align holes. Use a punch as needed to line up the holes:
a. Deck hole F6 and channel hole X7.
b. Deck hole F7 and channel hole Y7.
4. Connect deck to channel using 3/8" x 1" carriage bolts (S-3585) with flange nuts (S-10028).
5. Orient Deck F flange outside of Deck C flange. (See Figure 9M on Page 72.)
6. Align and connect Deck F to Deck C using 3/8" x 1" bolts (S-7469) with flange nuts (S-10028).
a. F Deck hole F2 to C deck hole C6.
b. F Deck hole F1 to C deck hole C7. (See Figure 9L.)

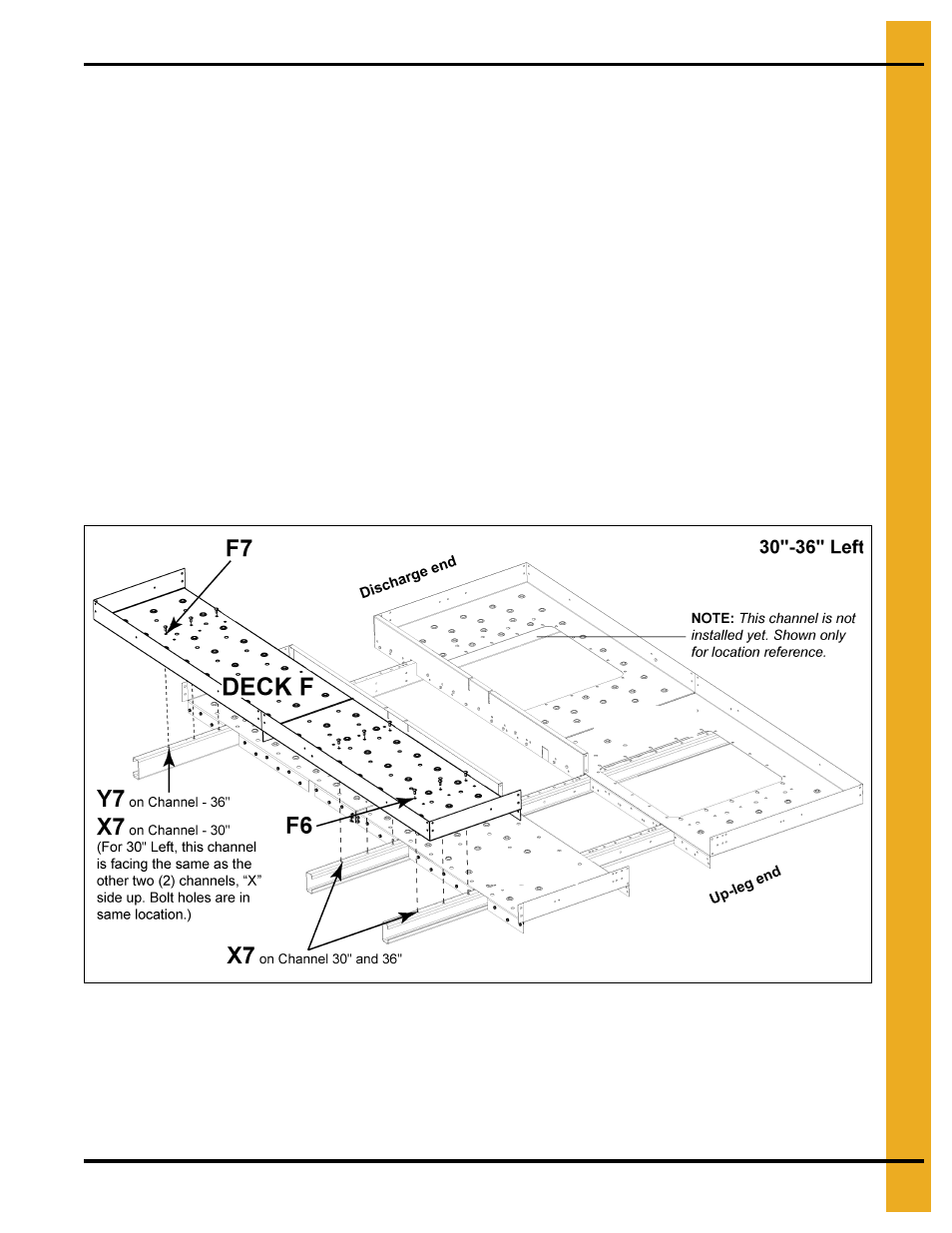

Figure 9L Deck F to Cross Deck Support Channel
DECK A
DECK C
