8. 30"-36" Head Platform Right Hand Drive
52 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Connect Deck A to Cross Deck Support Channels and Toe Board
NOTE: Orientation of etched holes on deck and channel is critical to subsequent steps. Connect all bolts
only finger tight until deck is completely assembled and then tighten to proper torque.
1. Locate pre-assembled Deck A. This plank consists of the hatch opening and the hatch cover plate.
2. Orient Deck A so the hatch opening is at discharge end of lower head and hatch cover plate is at
up-leg end.
3. At the Discharge End, use a punch as needed to line up. (See Figure 8H.)
a. For 36" - Deck hole A1 and channel hole X1.
b. For 36" - Deck hole A7 to channel hole X2.
c. For 30" - Deck hole A1 and channel hole Y1.
d. For 30" - Deck hole A7 to channel hole Y2.
e. For both 30" and 36" - Deck hole A2 to toe board hole A2. (See Figure 8I on Page 53.)
NOTE: At this time, the head platform hatch deck support (HP36HDS) should be installed UNDER
Deck A. Line this up with hole A12 on the deck flange near hatch opening and install at the
same time attaching deck to toe board.
(See Figure 8I on Page 53.)
4. At the Up-Leg End for both 30" and 36", use a punch to align:
a. Channel hole Y1 to corner hole of hatch cover plate.
b. Deck hole A4 to toe board hole A4. (See Figure 8I on Page 53.)
5. Connect holes as described above, connect all holes between support channel and Deck A.

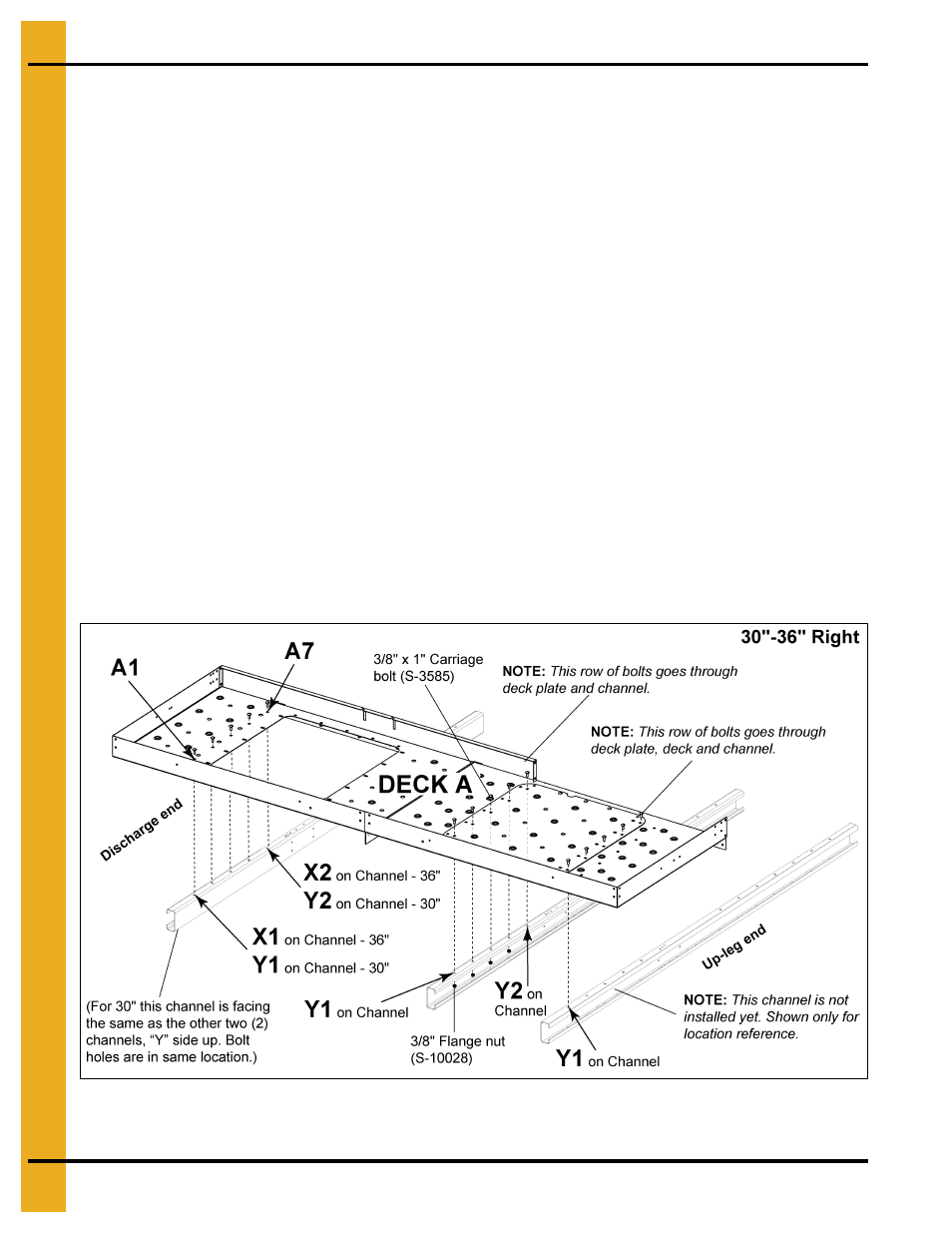

Figure 8H
