9. 30"-36" Head Platform Left Hand Drive
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
69

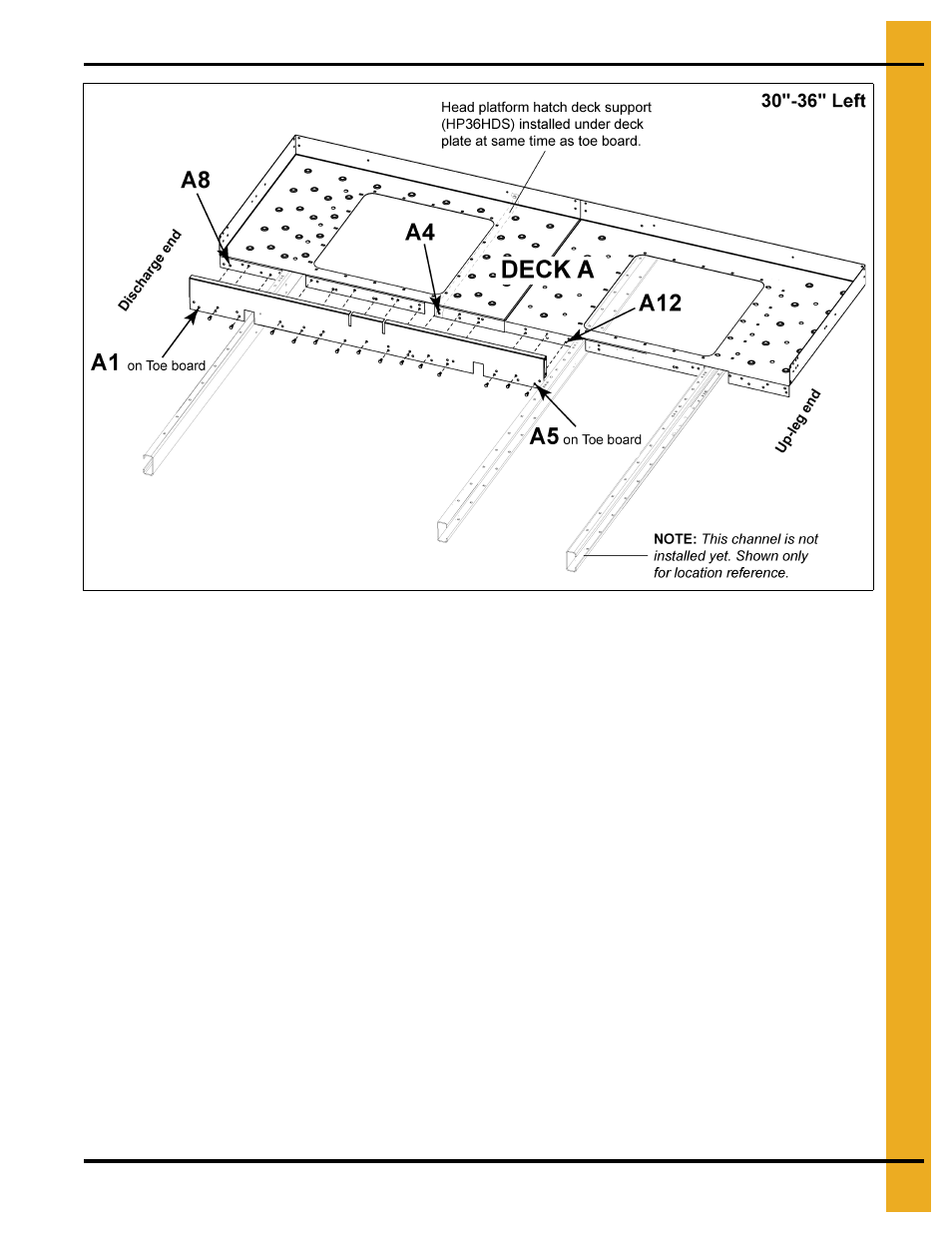

Figure 9I
6. Connect Deck A to Toe Board: Line up holes on toe board with holes on Deck A:
a. Deck hole A8 and toe board hole A1.
b. Deck hole A12 to toe board hole A5.
Connect Deck C to Cross Deck Support Channel and to Toe Board
NOTE: The orientation of the flanges on Deck C is critical to subsequent steps. Tighten bolts only finger
tight until deck alignment is complete.
1. Locate the pre-assembled Deck C. This deck consists of two (2) planks.
2. Orient Deck C with hole C10 at the discharge end of the lower head.
3. Make sure the extended kick plate flange of Deck C is away from the lower head assembly.
4. On the Discharge End, use a punch as needed to line up holes:
a. For 36" - Deck hole C10 and channel hole Y6.
b. For 30" - Deck hole C10 to channel hole X6.
NOTE: The only difference between the 30" and 36" is the channel on the discharge end would be
flipped so the opening of channel is the same as the other two (2) channels for 30".
5. Connect cross deck support channel and deck C using 3/8" x 1" carriage bolts (S-3585) with flange
nuts (S-10028). Connect all holes between channel and deck.
