9. 30"-36" Head Platform Left Hand Drive

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

61

Attach Cross Deck Support Channels to Lower Head

Three (3) cross deck support channels support the platform. Two (2) of the channels are attached to
brackets on the lower head section and the third channel is attached to the decking itself but is not
attached directly to the lower head. This third channel will be attached after the deck is assembled.

(See Figure 9A.)

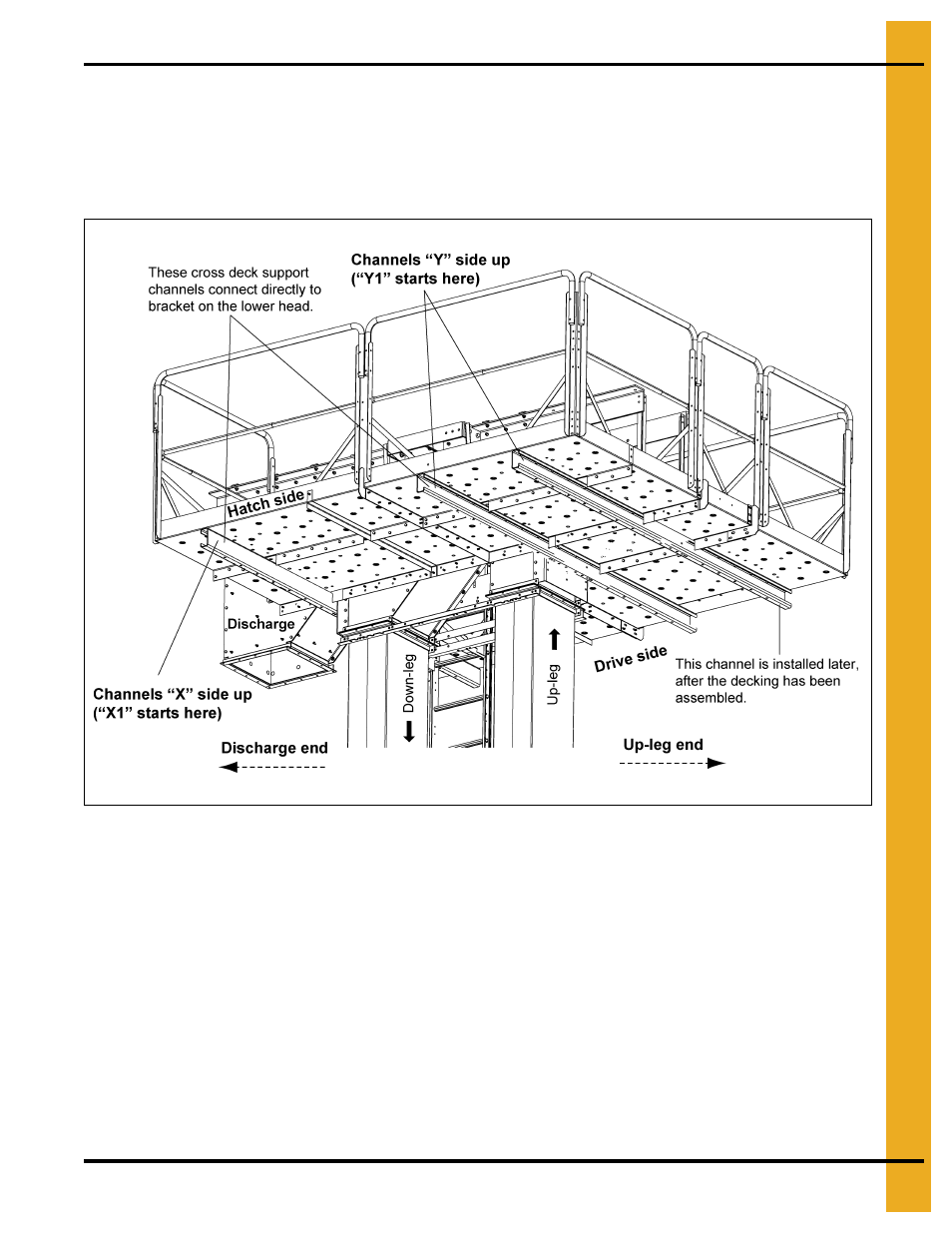

Figure 9A Left Platform Overview

NOTE: The difference between left and right. The only difference is the channel orientation as they attach

to the lower head brackets. This makes you swap Deck A with the positions of Deck C and Deck F.
