6. Tie Angles, Ladders and Safety Cages

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

31

Install Safety Cage

Safety cages are 10' sections, with the exception of the 3' entrance section.

1. Locate safety cage hoops (LDR-BCKTBHP) along the ladder rails where the safety cage hoops will

be installed. NOTE: The end hoops of a 10' section are spaced 4' from the two (2) middle hoops,
which are spaced 2' apart.

See Figure 6O

for spacing.

(See Figure 6O.)

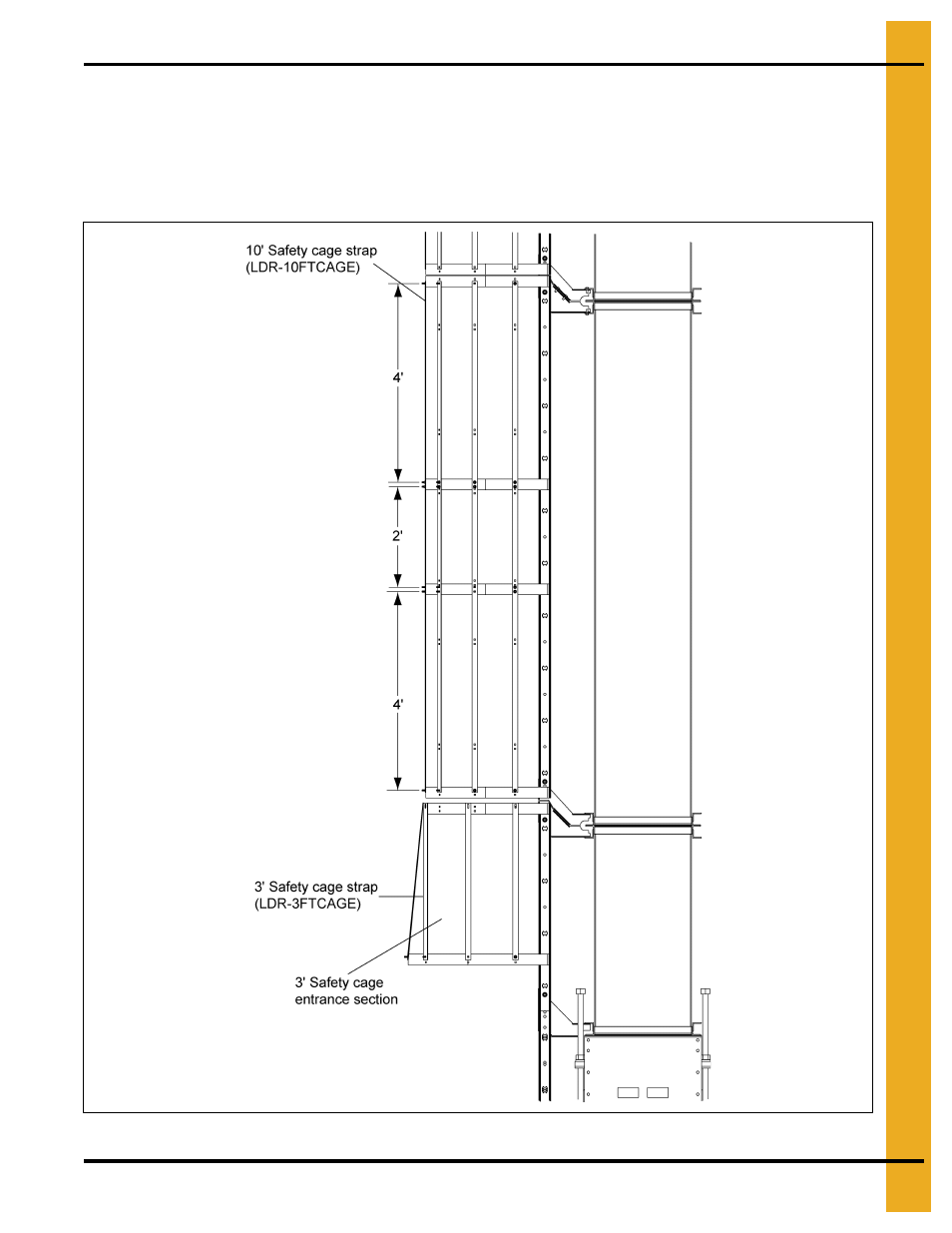

Figure 6O 10' Safety Cage Section
