6. Tie Angles, Ladders and Safety Cages
24 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
2. Attach trimmed ladder section to the left and right ladder brackets using 1/2" x 1" hex bolts through
the bottom most set of holes.

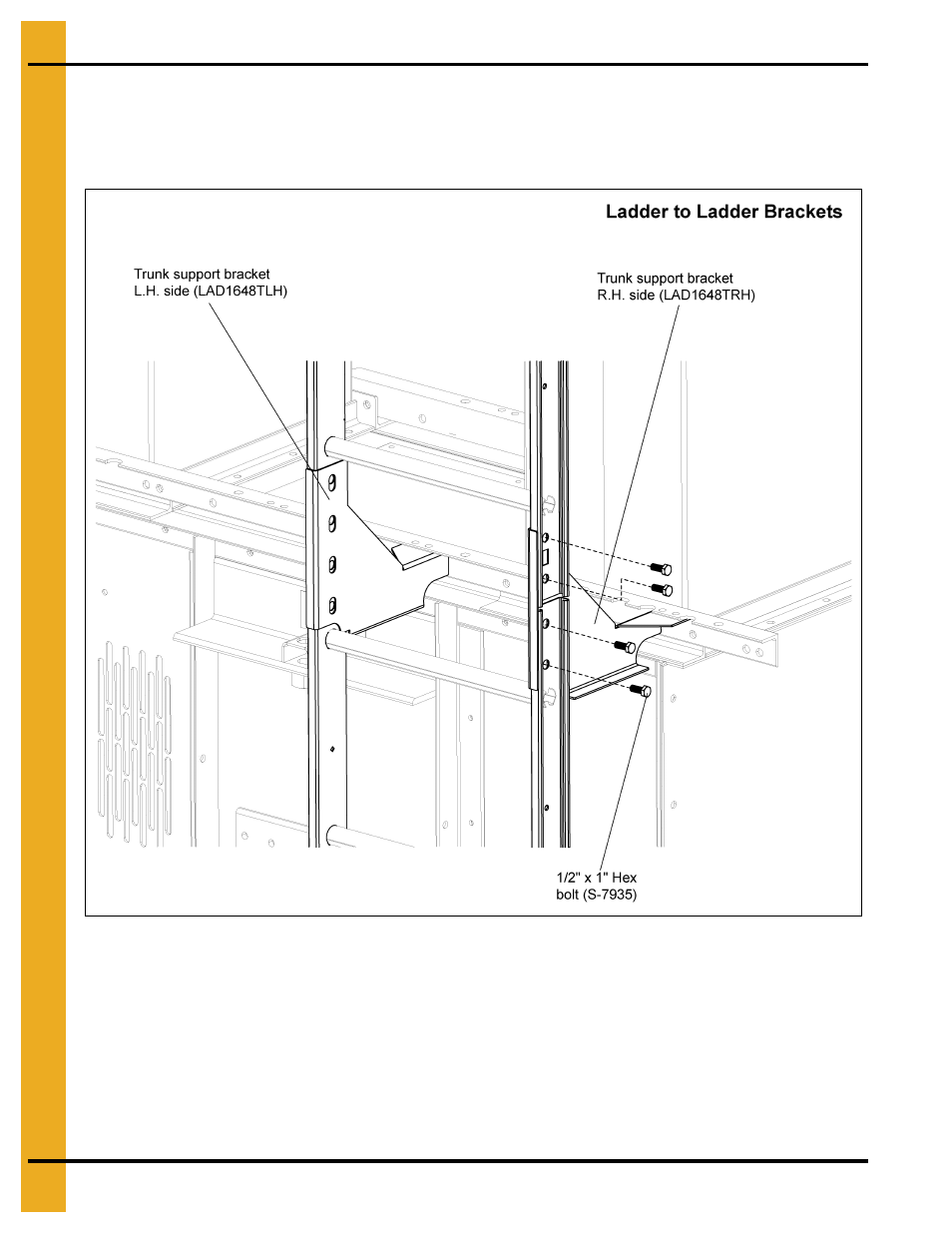

3. Attach the next ladder section to the ladder brackets using 1/2" x 1" hex bolts through the top set of
holes. (See Figure 6F.)
Figure 6F
4. Secure the bottom of the ladder to the boot or ground. NOTE: Bracket for this step is not included.
