10. 30"-36" Head Platform Post, Rails and Bracing
78
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Install Head Side Posts
For 30" Side Posts
1. Install side post (HP1648HP) to decking.

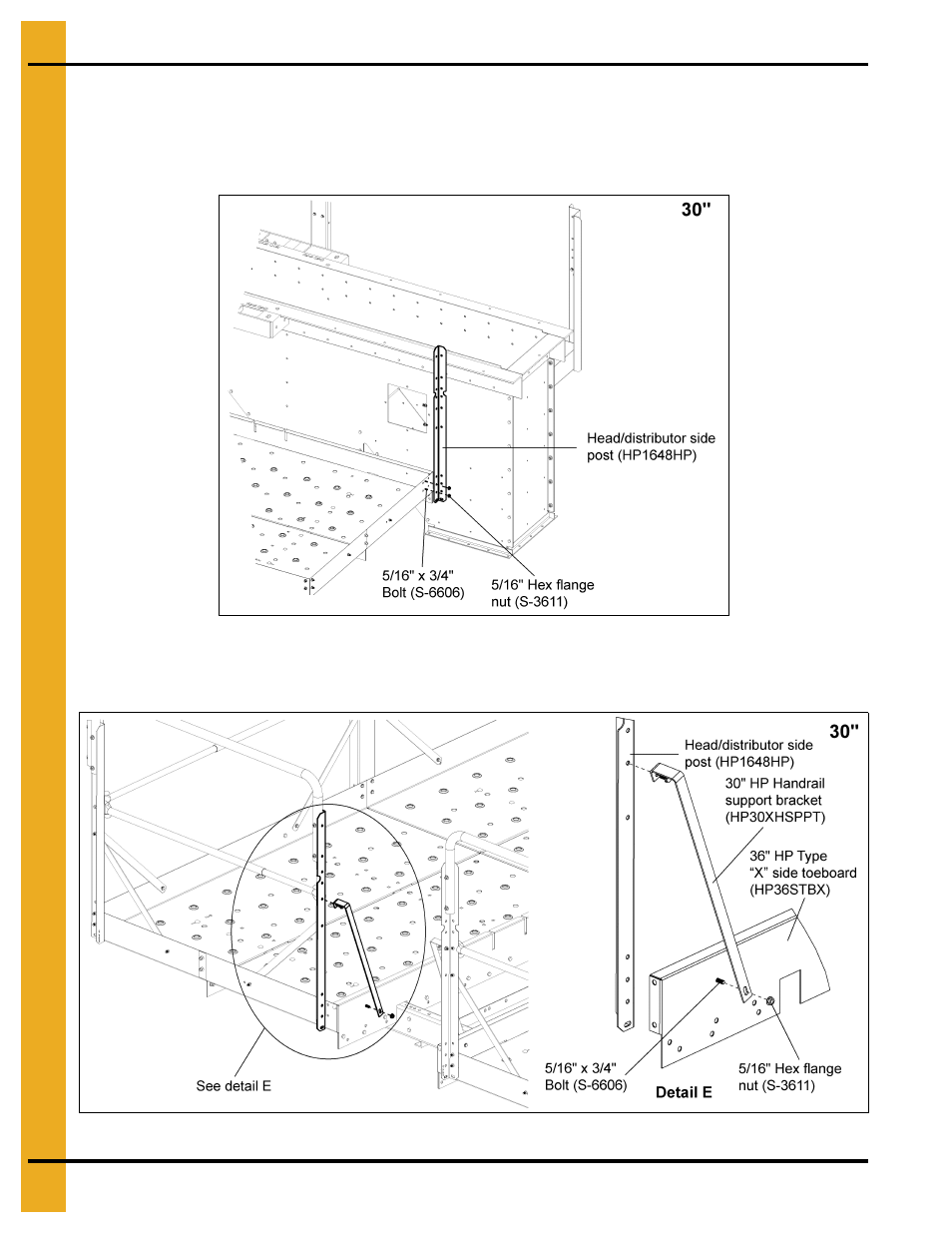

Figure 10E
2. Install handrail support bracket (HP30XHSPPT) from toe board to side post (HP1648HP) using
5/16" x 3/4" bolts and nuts.
Figure 10F
