13. 6 x 6 Distributor Platforms

110

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

Upper Handrails (Continued)

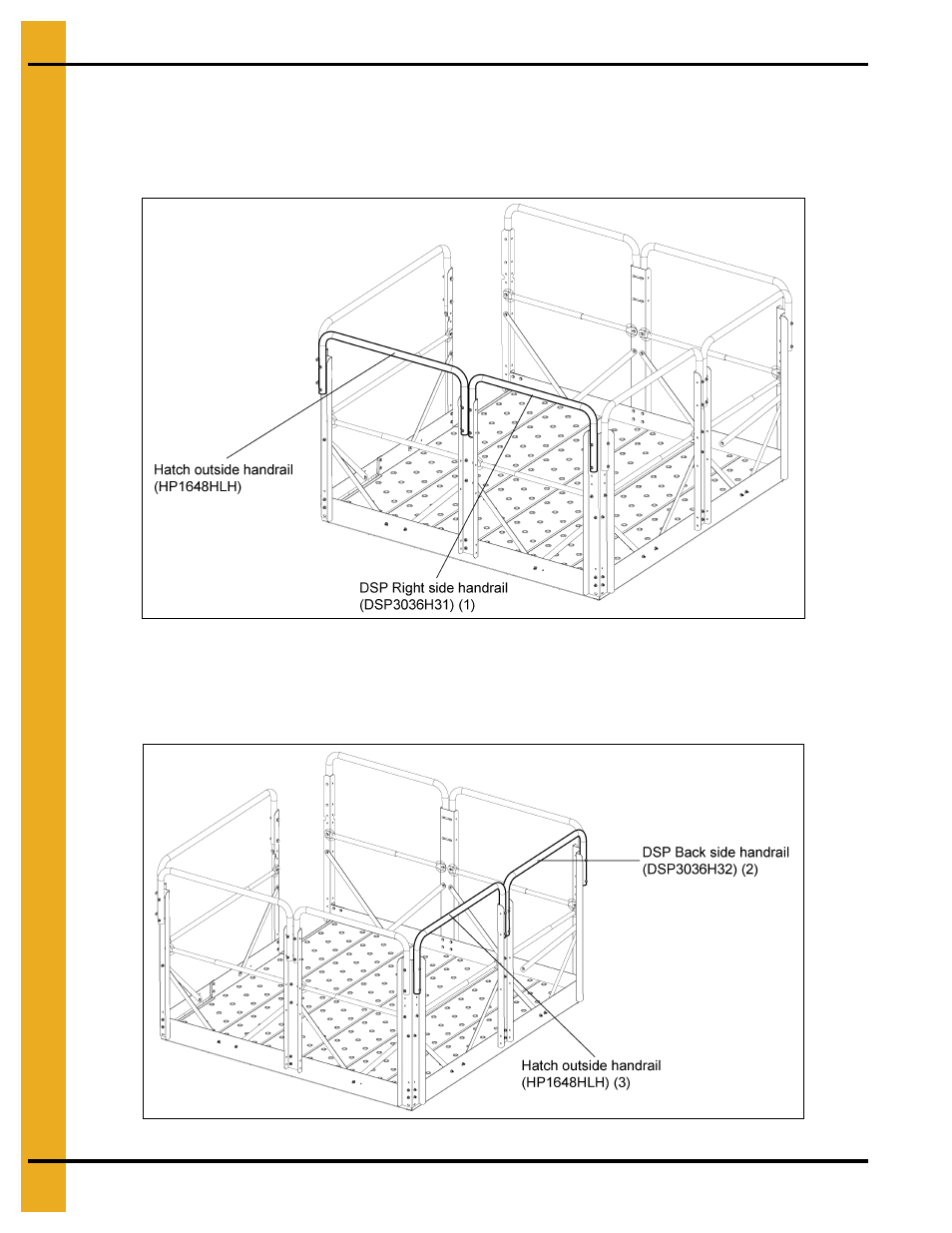

Attach hatch outside handrail (HP1648HLH) from “W” corner post to platform post and right side handrail
(DSP3036H31) from platform post to next “W” corner post using 5/16" bolt (S-7877) and 5/16" flange
nut (S-3611).

(See Figure 13L.)

Figure 13L

Attach hatch outside handrail (HP1648HLH) from “W” corner post to platform post and back side handrail
(DSP3036H32) from platform post to next “W” corner post using 5/16" bolt (S-7877) and 5/16" flange
nut (S-3611).

(See Figure 13M.)

Figure 13M
