8. 30"-36" Head Platform Right Hand Drive

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

51

Slide/Place Toe Boards on Cross Deck Support Channels

NOTE: Due to the snug fit, you should slide the toe boards in place before placing and securing Deck A

or any subsequent decking.

1. On the non-drive side slide one toe board (HP36STBX) into place.

2. On the drive side slide one toe board (HP36STBX) into place.

(See Figure 8G.)

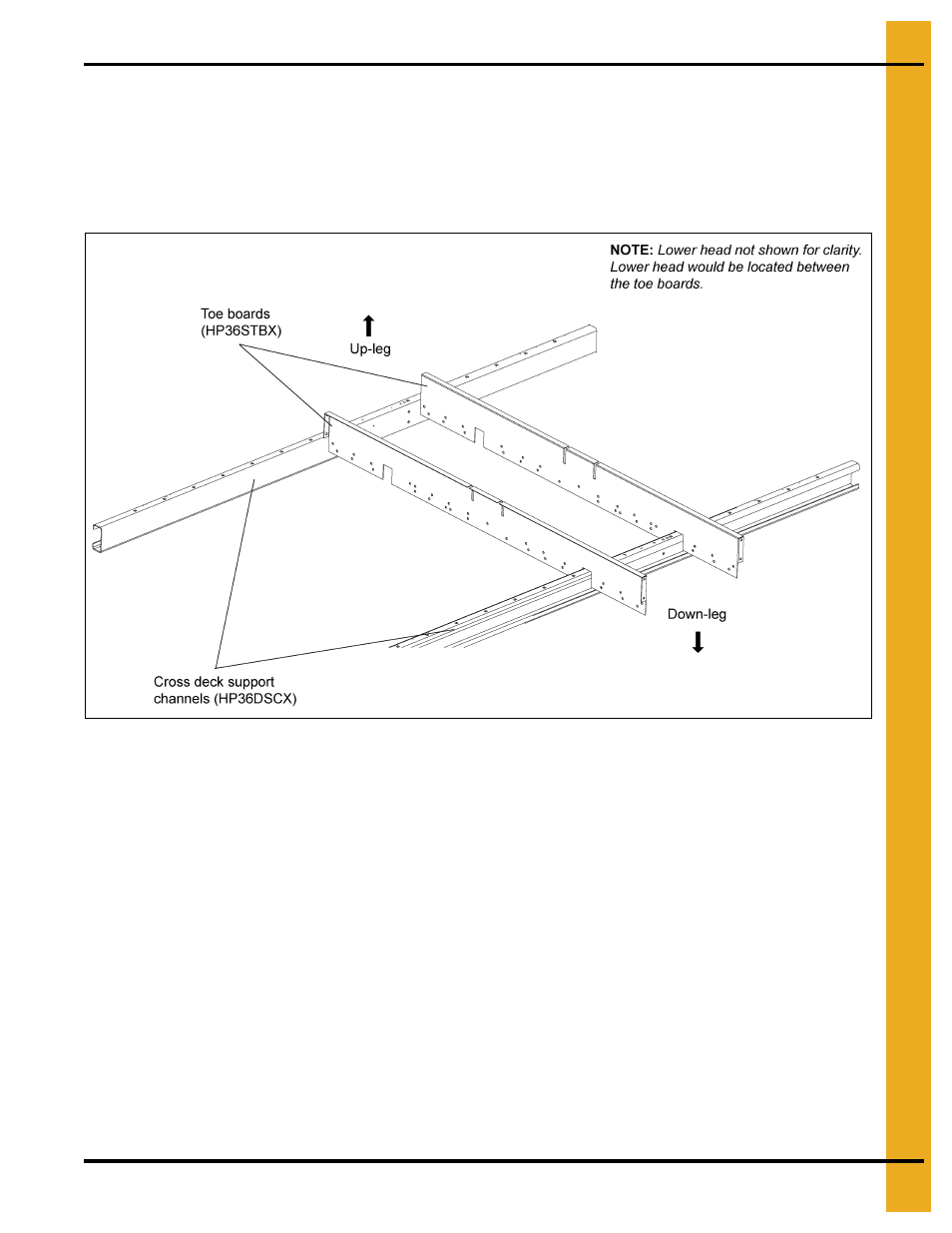

Figure 8G
