11. Install Hatch
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series 87
4. Slide two (2) magnets (16-0092) onto each MS #6 x 3/4" FHS flat head screw (S-7166). Position the
magnet so the screw head is countersunk into the magnet. (See Figure 11C.)
5. Insert screws with magnets through the hatch door and fasten with the #6 flange nut (S-10133).

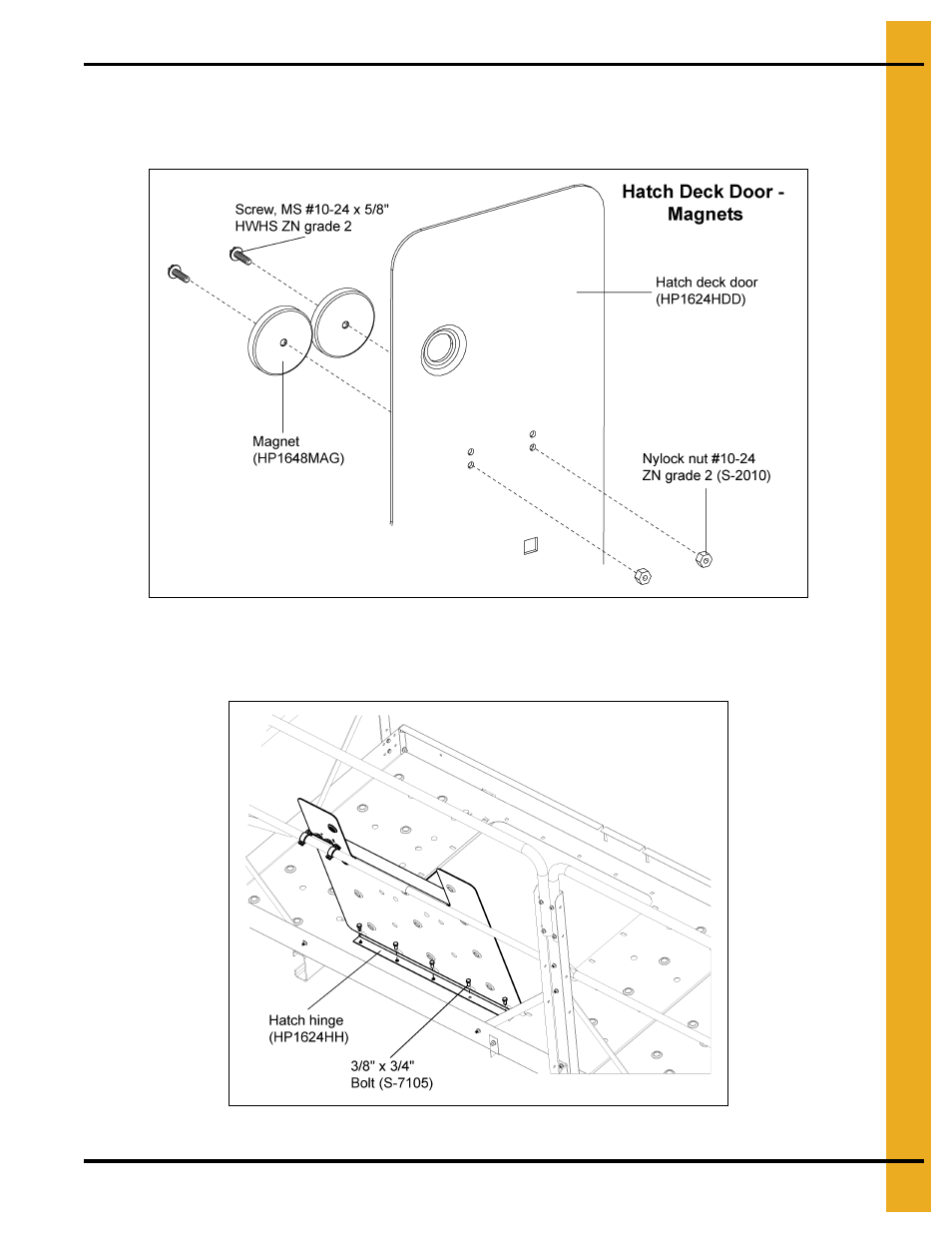

Figure 11C
6. Align holes on the hatch hinge with holes along the deck opening closest to the kick plates. Install
the hatch door to the decking using 3/8" x 3/4" bolts (S-7105) and nuts. (See Figure 11D.)
Figure 11D
