8. 30"-36" Head Platform Right Hand Drive

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

45

Cross Deck Support Channels to Lower Head

Three (3) cross deck support channels support the platform. Two (2) of the channels are attached to
brackets on the lower head section and the third channel is attached to the decking itself but is not
attached directly to the lower head. This third channel will be attached after the deck is assembled.

(See Figure 8A.)

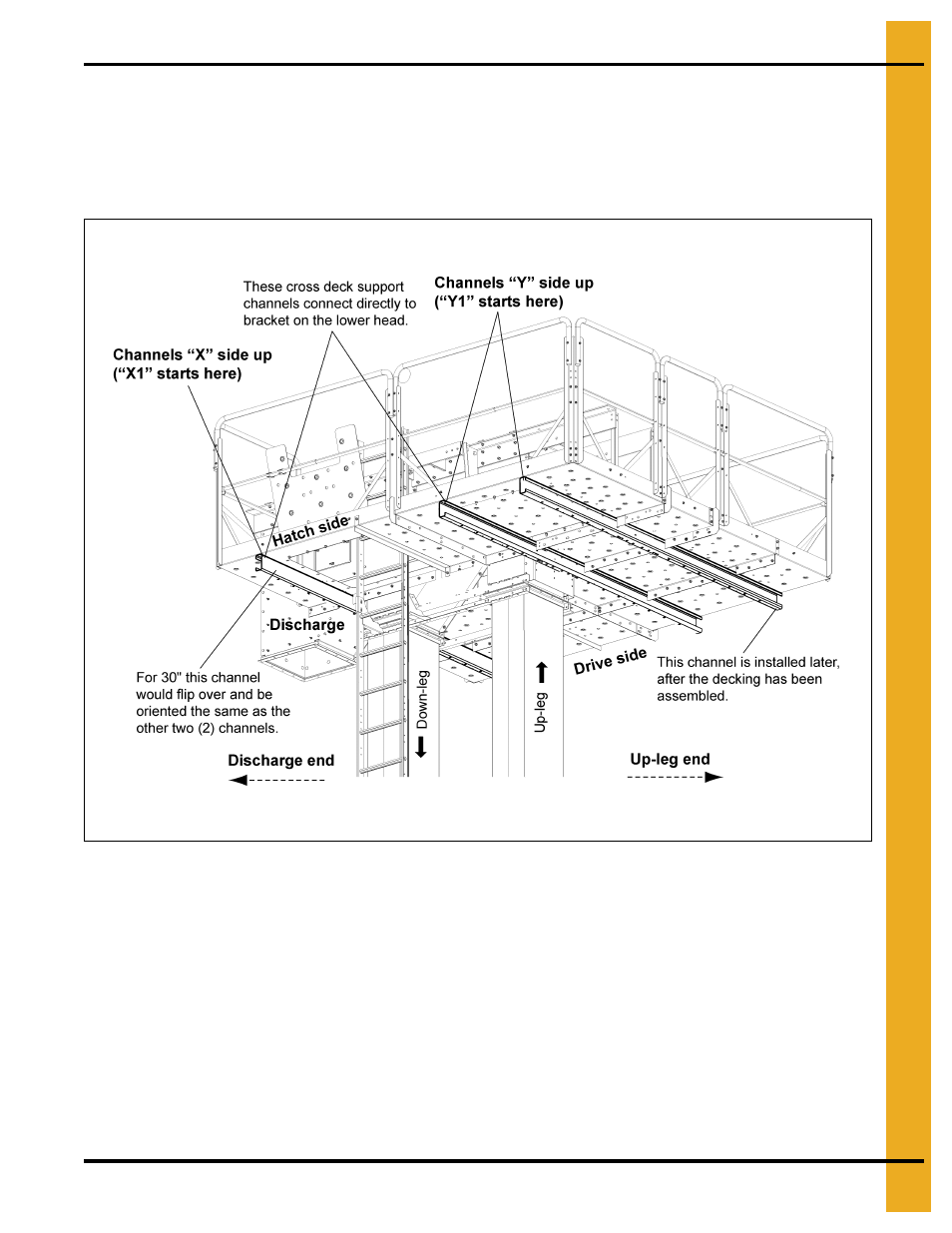

Figure 8A 30"-36" Platform Overview
