10. 30"-36" Head Platform Post, Rails and Bracing

82

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

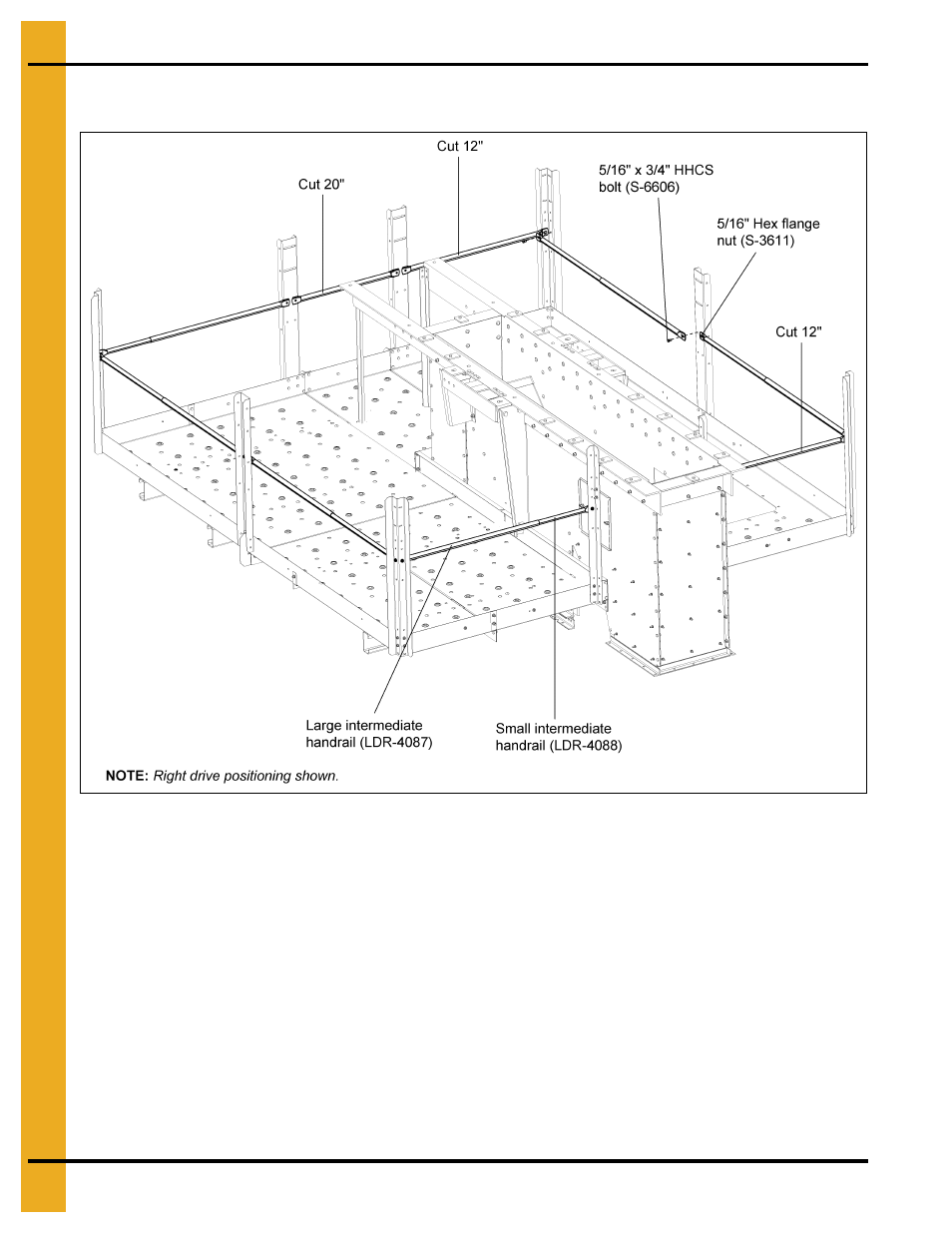

3. Install the remaining Intermediate handrails around the platform using 5/16" x 3/4" bolts (S-6606)

and nuts.

(See Figure 10K.)

Figure 10K
