8. 30"-36" Head Platform Right Hand Drive

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

57

6. Connect Deck F to Deck C using 3/8" x 1" bolts (S-7469) with flange nuts (S-10028).

a. Align F Deck hole F2 to C deck hole C6.

b. Align F Deck hole F1 to C deck hole C7.

(See Figure 8M.)

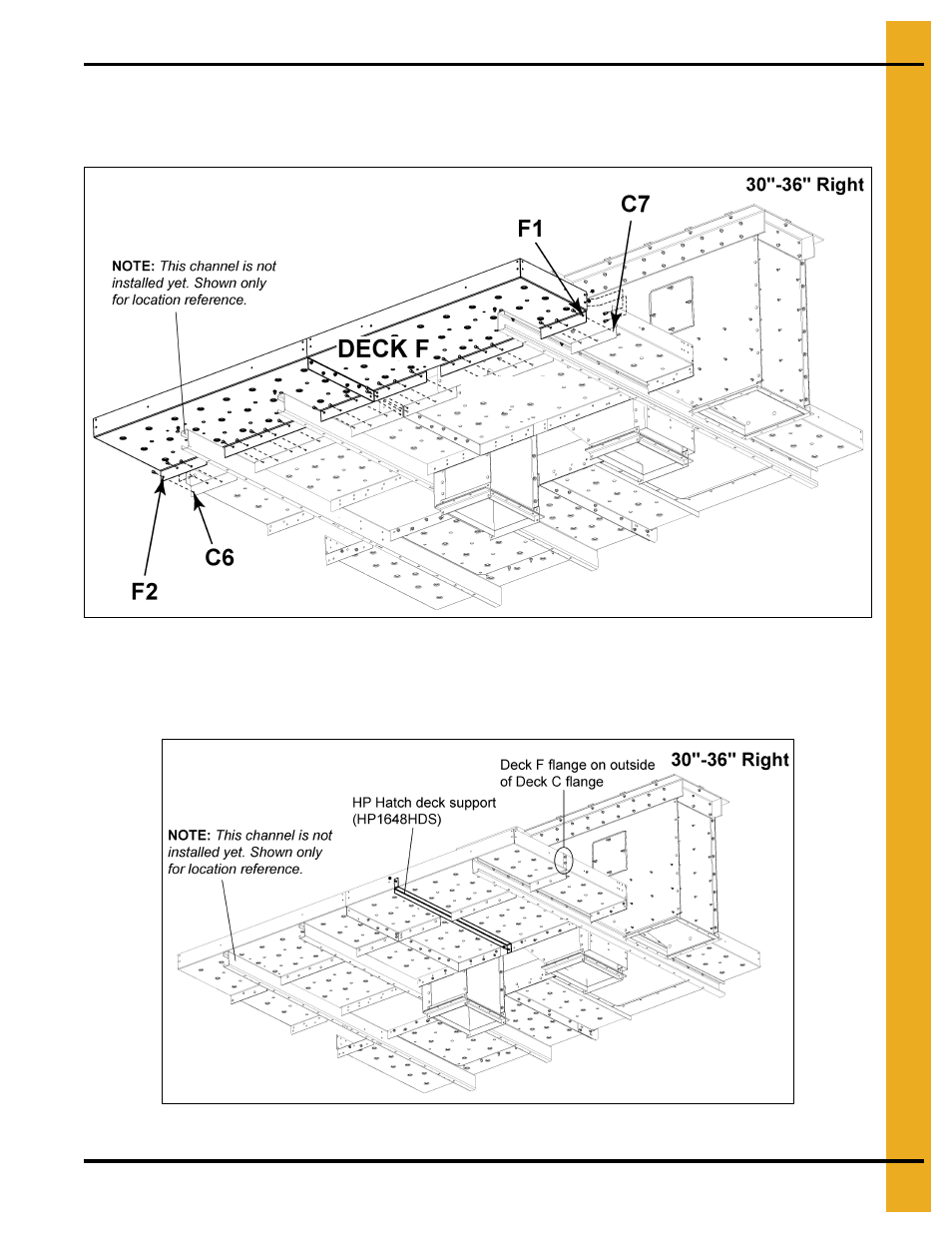

Figure 8M Deck F to Deck C

7. Install the head platform hatch deck support (HP1648HDS) under Deck C and Deck F using

3/8" x 3/4" bolt (S-7105) and nut.

(See Figure 8N.)

NOTE: You may need to remove a bolt from the

toe board if one was installed in this location.

Figure 8N

DECK C
