7. Rest Platform
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
39
5. Install the front and back intermediate handrails to the platform posts using 5/16" x 3/4" flanged hex
bolts. Adjust the rail into position by sliding it out to the correct length.
6. After cutting the two (2) large and two (2) small intermediate handrails, slide them to the correct
length and install them to the handrail posts on the short sides of the platform using 5/16" x 3/4"
flanged hex bolts.

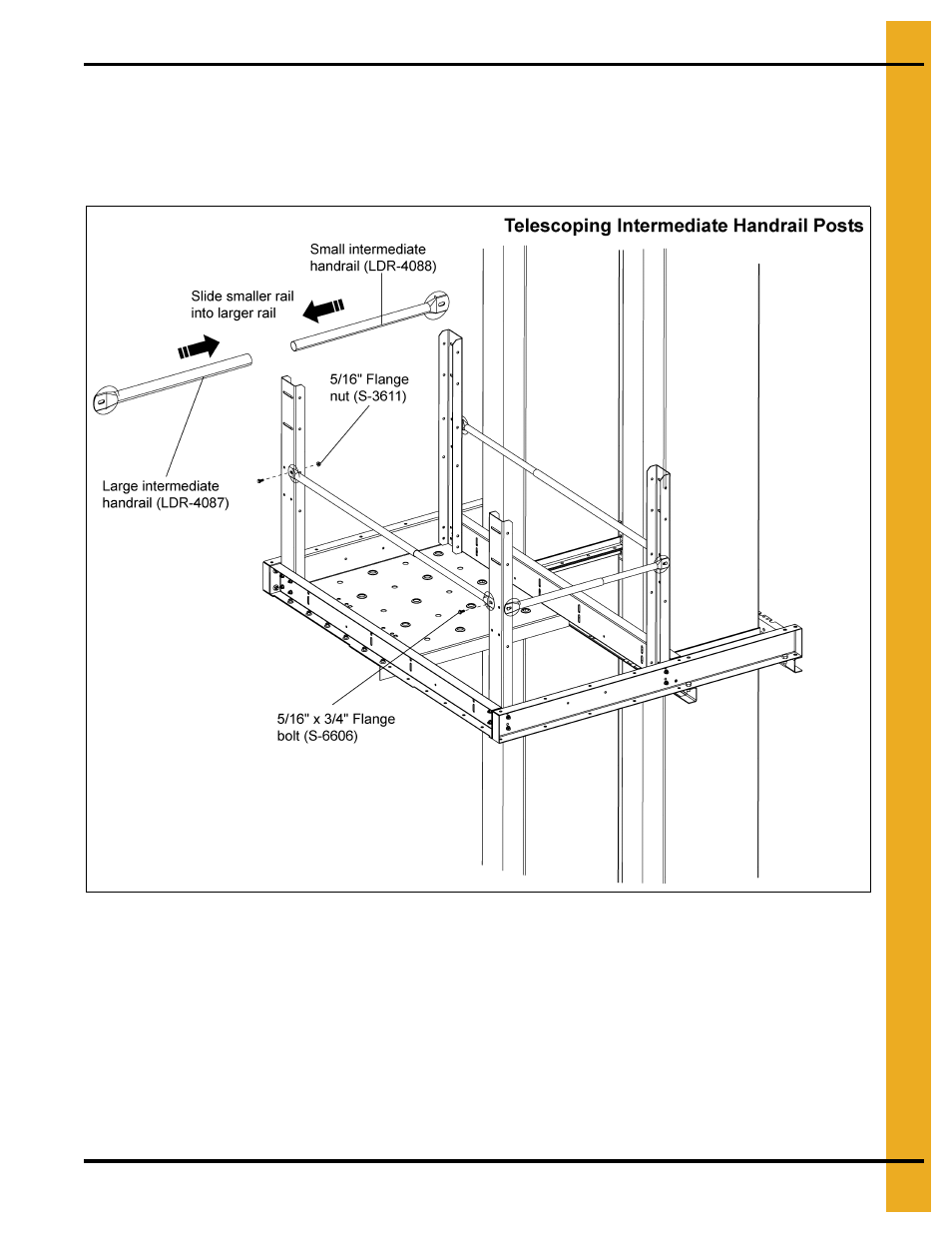

Figure 7J
