Using the Front Panel

8-4

Phaser 560 Color Laser Printer

Two-line display

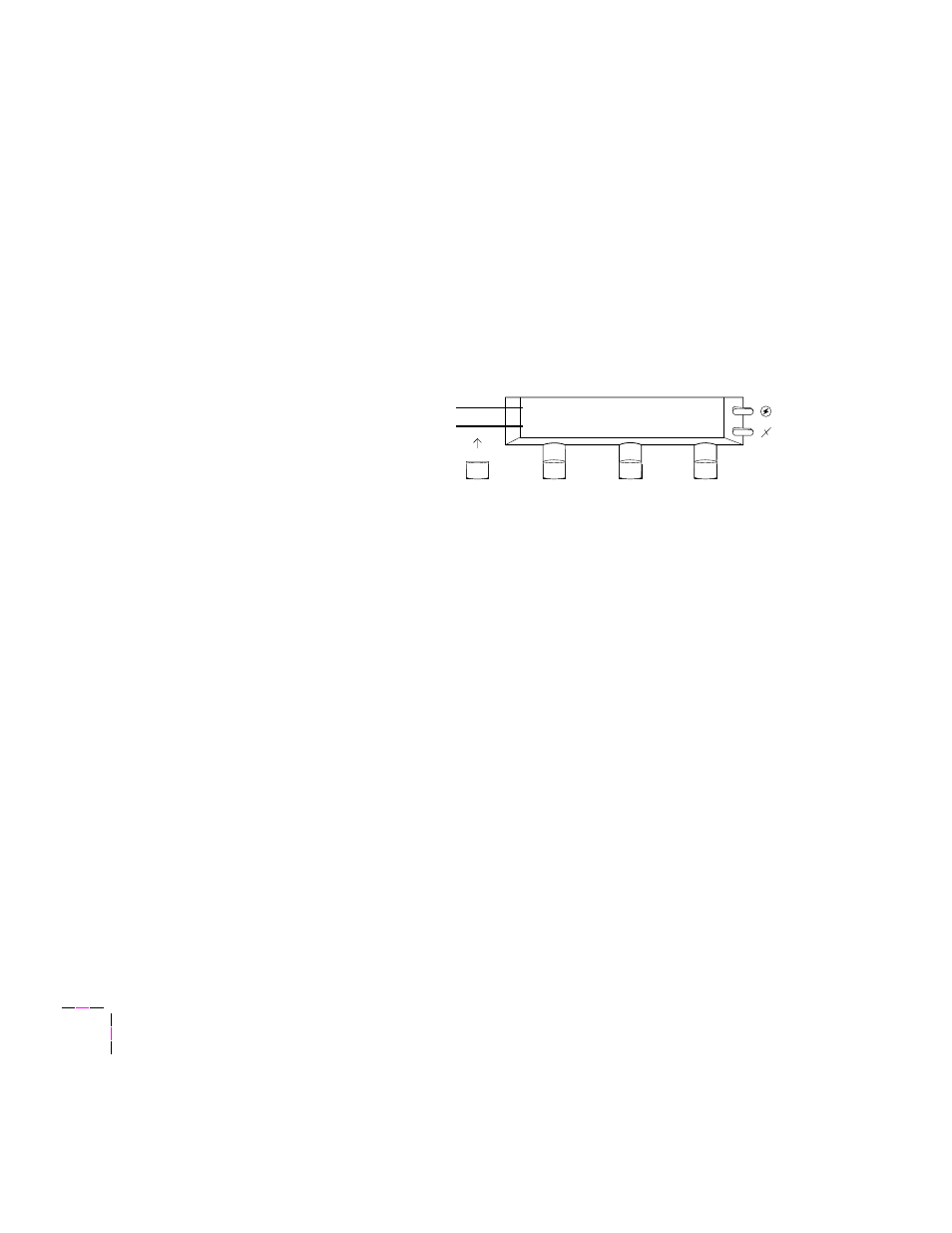

The two lines of the display have the following functions:

Line a

■

Displays status messages such as

Ready

and

Printing

■

Displays operation errors and warnings such as

:low

■

Displays the names of menus and parameters you can set.

Line b

■

Displays button labels such as

<---

for

previous

and

--->

for

next

(for moving through selections in a given menu),

Menu

for access

to a menu of selections, and

Print

and

to make selections.

For a roadmap to the front panel menu selections, turn to “Front panel menu
map” on page 8-7.

9698-50

Exit

Ready

Info

Menu

a
b
