Troubleshooting
7-40
Phaser 560 Color Laser Printer

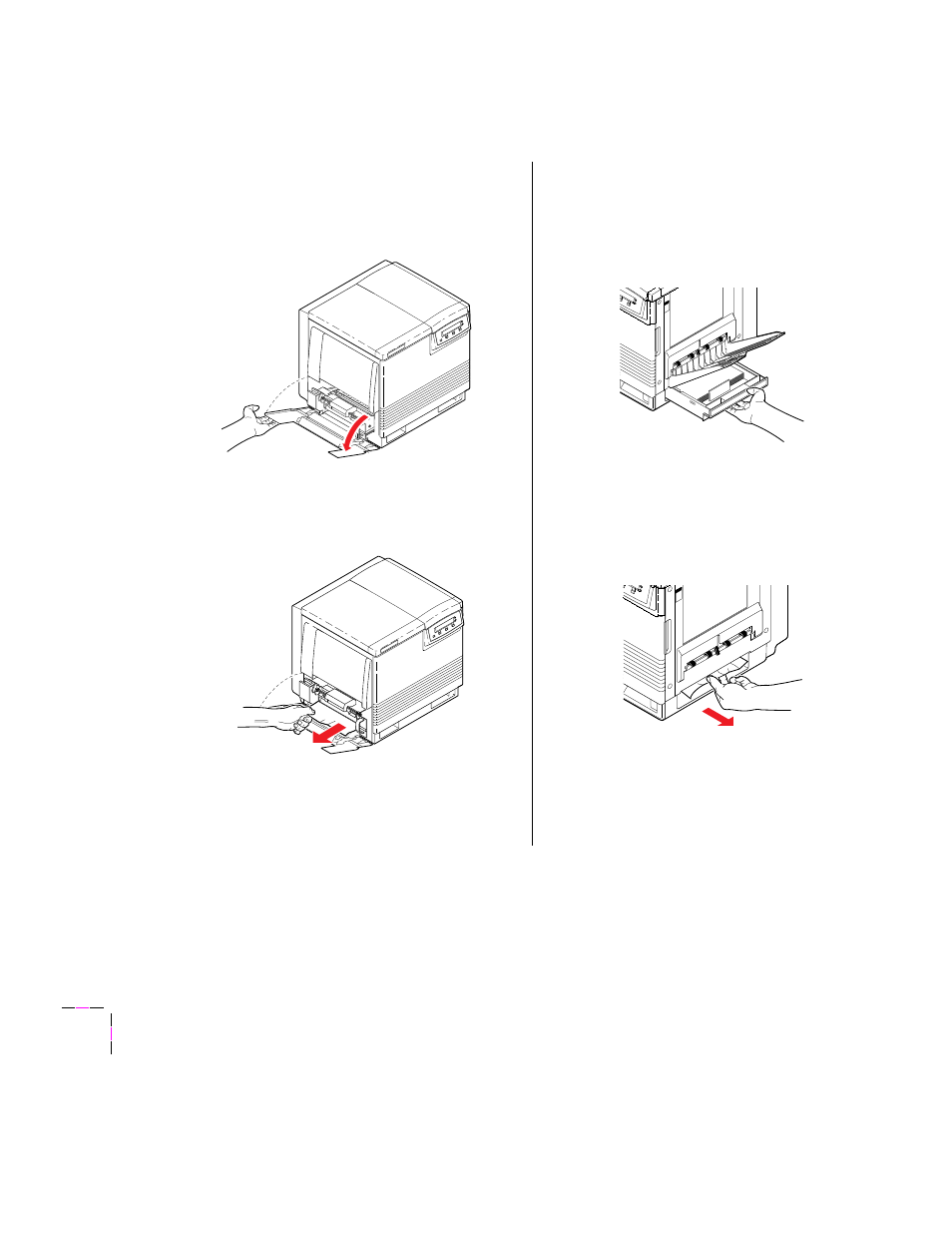

Jam at A
Solution 1
Solution 2
1.
Open the left side door (if your printer has
a Lower Tray Assembly installed, open the
Upper
left side door).
2.
Remove the complete piece of jammed media.
1.
Remove the media tray (if your printer has a
Lower Tray Assembly installed, remove the
Upper
media tray).
2.
Remove the complete piece of jammed media
from inside the printer.
9698-61
9698-33
2
9698-34
A4
PA
PER
1
9698-34
2
