Clearing a media jam
If the printer has frequent media jams, make sure that you follow these
guidelines:
■ Always use high-quality laser paper and Tektronix-brand
transparencies, glossy paper, and fabric transfer media.
■ Make sure that you load specialty media only in the Multi-Purpose
Feeder and that you set the Media Thickness switch to the correct
setting for the media used.
If a media jam occurs, the front panel reports Jam at . The
are the various sensors throughout the paper path, listed as
A through E .

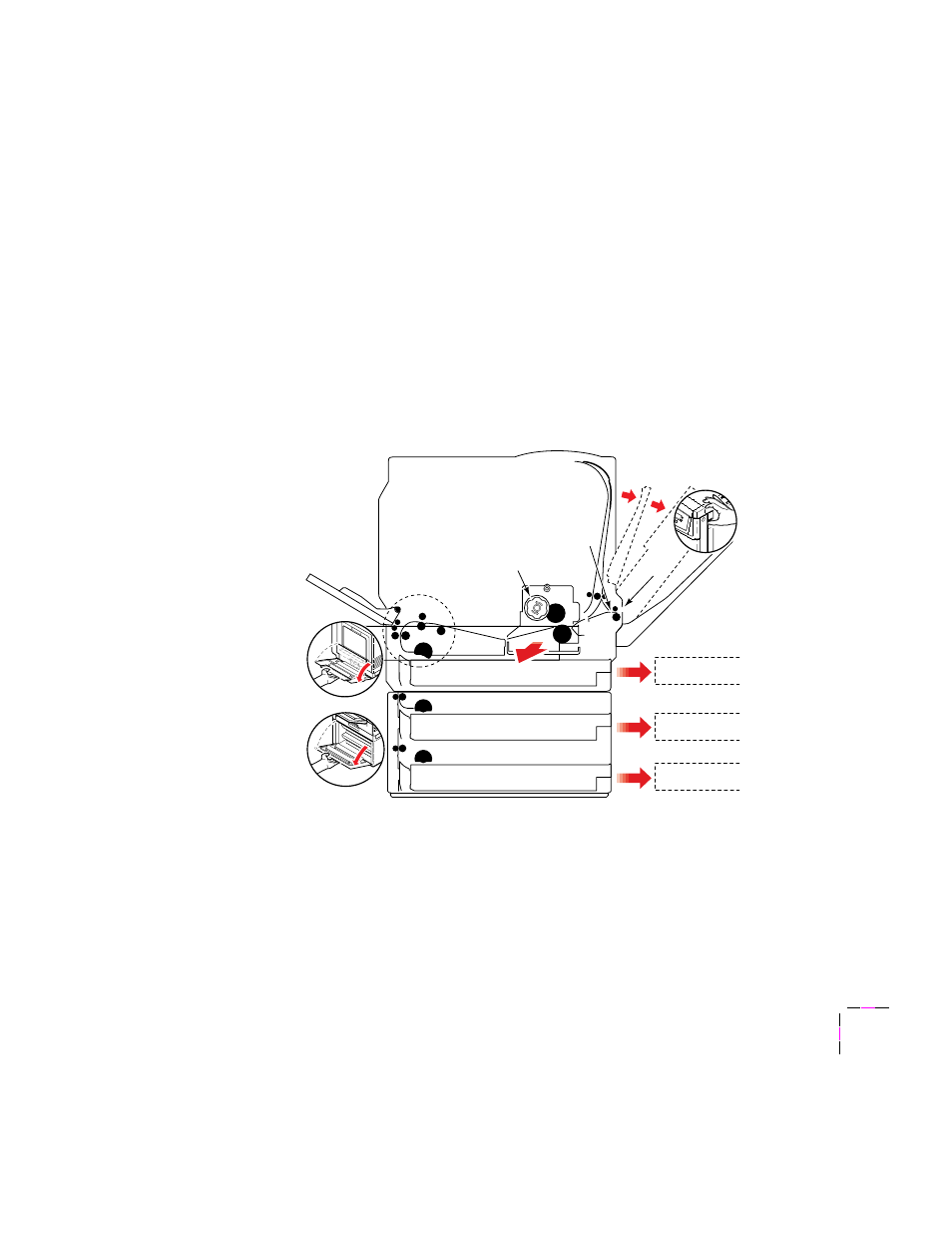

The following illustration shows the locations of the sensors that report a
media jam (
A through E ).
9698-31
A
Jam D
Jam A
Jam C
Jam
C, D
E
D
Jam B
Jam B
Jam A
Multi-Purpose
Jam A, C
Jam B
