1-6
SPARC Enterprise Mx000 Servers XSCF User’s Guide • April 2008
XSCF Unit Front Panels on the High-End Systems
includes an outline drawing of the XSCF Unit front panel on the high-end
systems. For connections between the model and an expansion cabinet, an XSCF
Unit as shown at the bottom of
is mounted in the expansion cabinet.

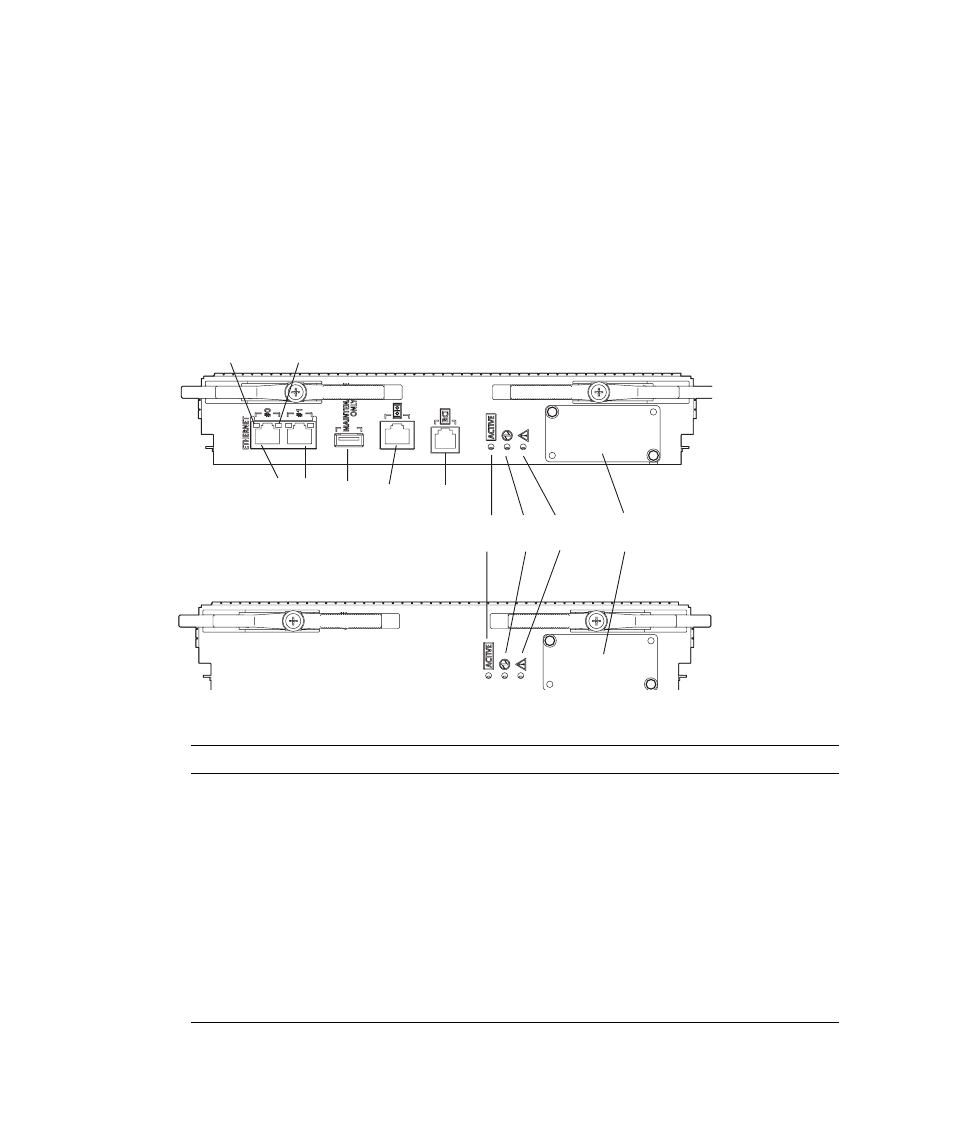

FIGURE 1-2
Outline Drawing of Front Panels on the XSCF Unit for Base Cabinet and the XSCF Unit for
Expansion Cabinet (In High-End Systems)
XSCF Unit (
Front
; in Expansion cabinet
)
XSCF Unit (Front)
1
2
3
4
5
6
7
8
9
10
11
.
Number
Description
Number
Description
1
Link Speed LED
7
RCI port
2
ACT LED
8
ACTIVE LED
3
ETHERNET#0 port
(XSCF-LAN#0 port)
9
READY LED
4
ETHERNET#1 port
(XSCF-LAN#1 port)
10
CHECK LED
5
USB port
11
Connector that connects the XSCF
Unit for base cabinet with the XSCF
Unit for expansion cabinet
6
Serial port
