Chapter 1 XSCF Overview 1-3
Note – (3) The RCI is the power and system control interface that interconnects I/O
units with the server, including processors and expansion file units, and performs
such functions as power supply interlock and alarm notification and recognition.
XSCF Unit Panel (Front) on the Midrange Systems

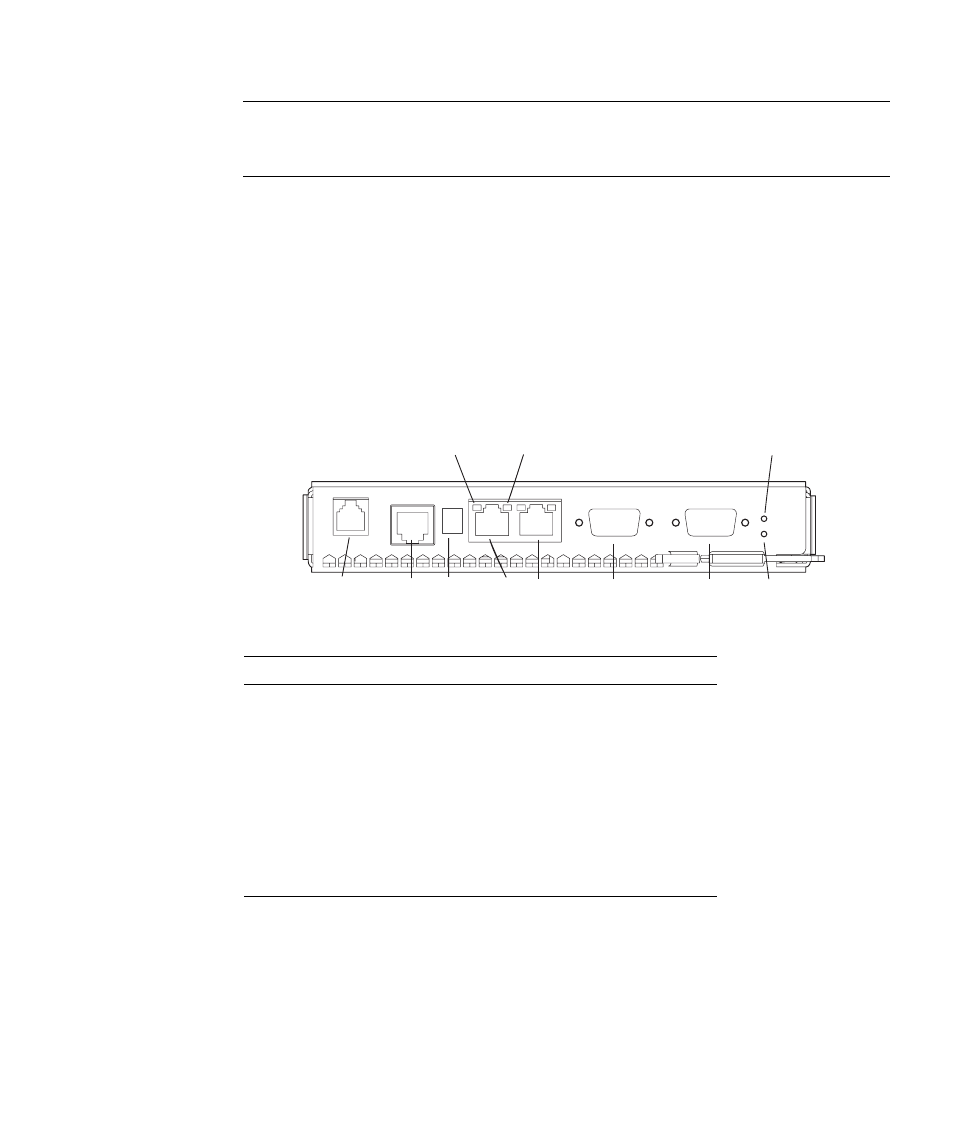

FIGURE 1-1 is an outline drawing of the XSCF Unit front panel on the midrange
systems.
FIGURE 1-1 Outline Drawing of the XSCF Unit Front Panel (An Example of the Midrange
Systems)
XSCF Unit (Front)
1 2 3 4 5 8 9 10
6 7 11
Number Description Number Description
1 RCI port 7 ACT LED
2 Serial port 8 UPC#1
3 USB port 9 UPC#0
4 ETHERNET#1 port
(XSCF-LAN1 port) 10 CHECK LED
5 ETHERNET#0 port
(XSCF-LAN0 port) 11 READY LED
6 Link Speed LED
