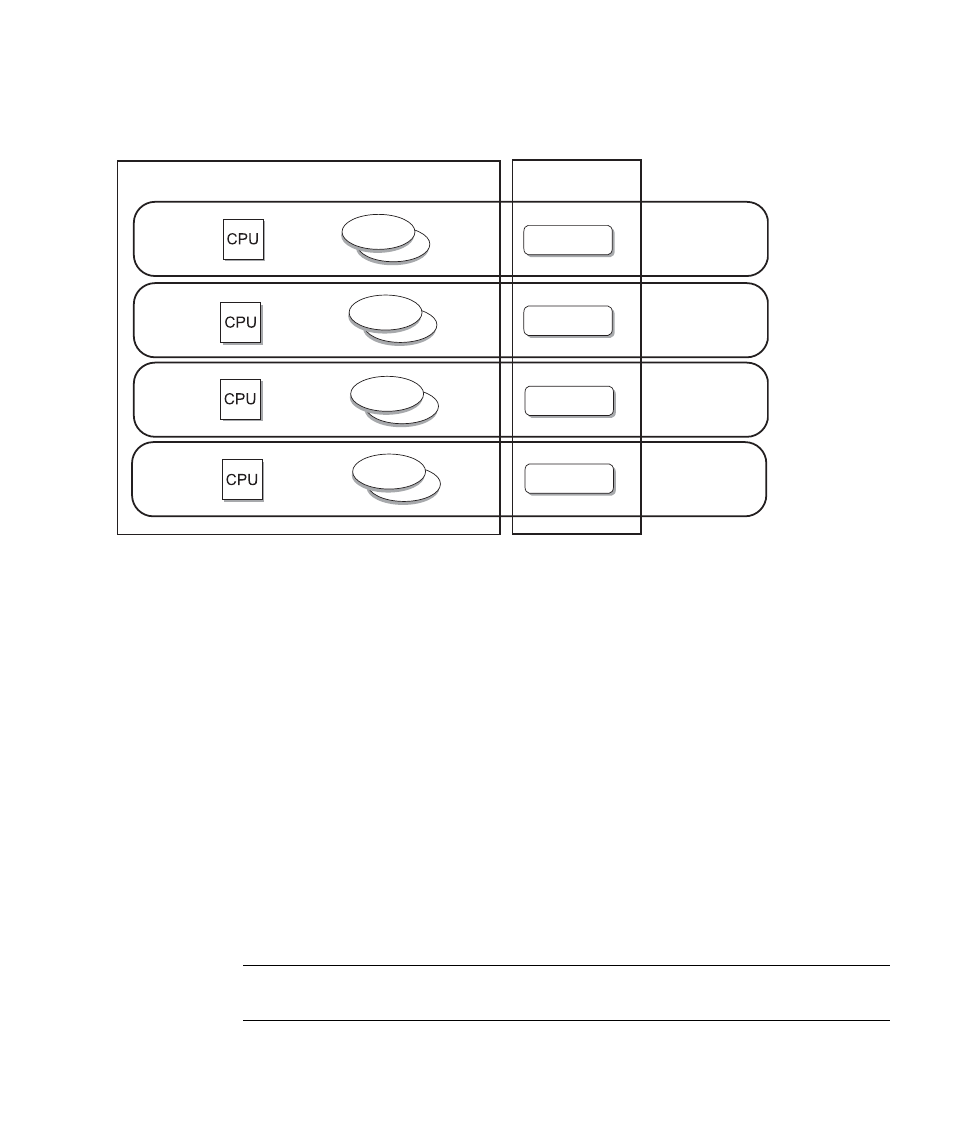

FIGURE 2-7
XSB Configuration Diagram (Quad-XSB) (In the High-End Systems)
IOU#n
CMU#n
When PSB#n is Quad-XSB type
XSB#xx-0
Memory
I/O device
Memory
Memory
Memory
I/O device
I/O device
I/O device
XSB#xx-1
XSB#xx-2
XSB#xx-3
Domain Configuration Procedure and Reference Sources
The steps from making domain configuration settings to activating a domain are
shown below. Each step contains a reference to where you can find additional
information.
1. Log in to XSCF.
2. Make memory mirror mode and Uni/Quad-XSB settings for each PSB. (Note)
(See showfru (8), setupfru (8), and
.)
3. Create the DCL information corresponding to a domain, LSB, and XSB. (See
showdcl
(8), setdcl (8).)
4. Assign an XSB to the domain, according to the created DCL information. (See
addboard
(8), showboard (8). )
5. Turn on the power to the domain.
Note –
Make these settings only to change the number of XSB divisions and the
mirror mode.
