Power supply status LEDs
Each hot-swap power supply has three status LEDs.
1
2
3

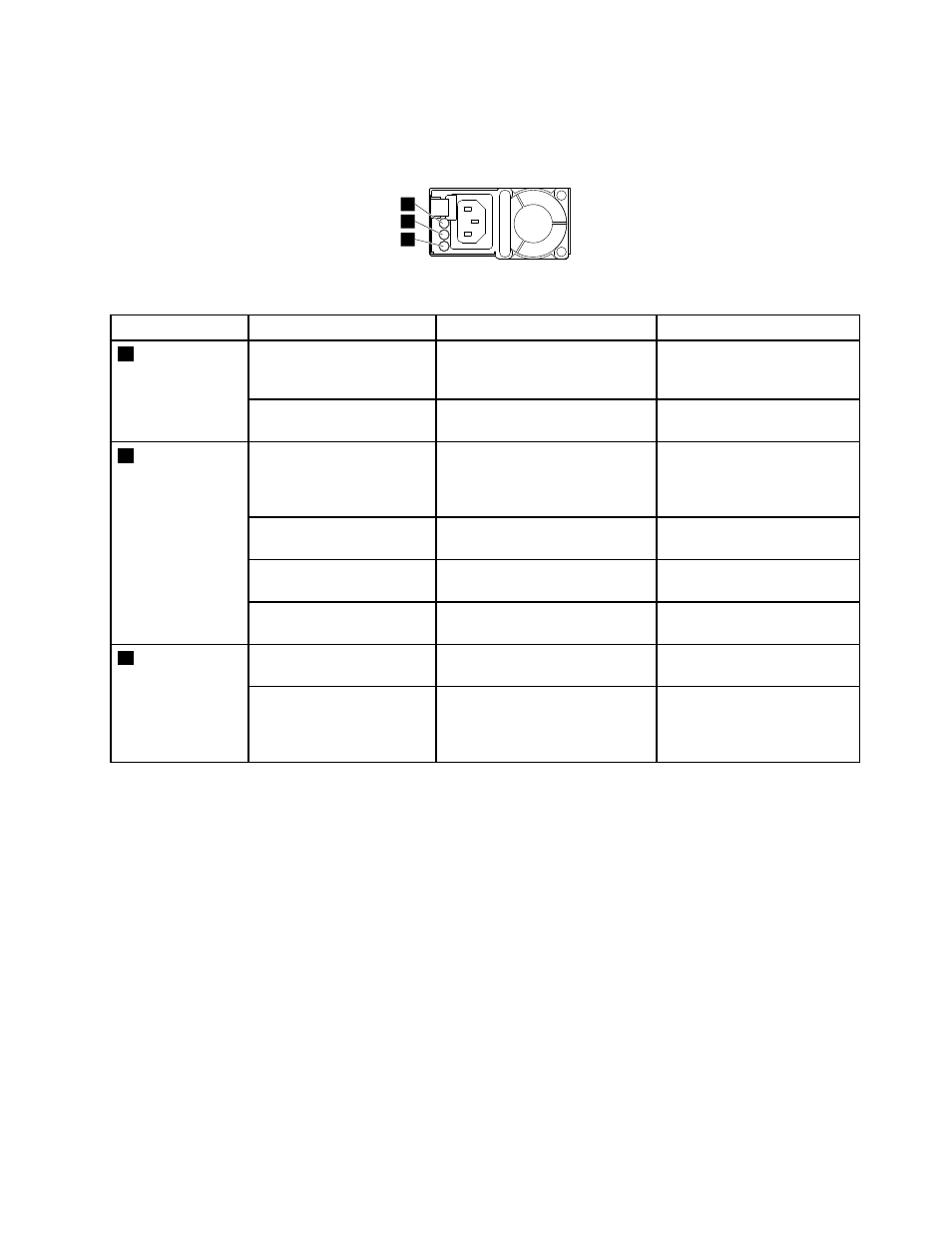

Figure 37. Power supply status LEDs
LED Status Description Action
Off The power supply is
disconnected from the ac
power source. No action is needed. 1 Input status LED
On, green The power supply is connected
to the ac power source. No action is needed.
Off The server is off or the power
supply is not working normally. Replace the power supply.
See “Installing or replacing a
hot-swap redundant power
supply” on page 119.
Blinking, green (about one
flash every two seconds) The power supply is in cold
redundancy active mode. No action is needed.
Blinking, green (about two
flashes each second) The power supply is in cold
redundancy sleep mode. No action is needed.
2 Output status
LED
On, green The server is on and the power
supply is working normally. No action is needed.
Off The power supply is working
normally. No action is needed. 3 Fault LED
On, amber The power supply has failed. Replace the power supply.
See “Installing or replacing a
hot-swap redundant power
supply” on page 119.
Connecting cables
To connect the signal cables from the installed hardware components, refer to the related information
in the following topics:
• “System board components” on page 43
• “AnyRAID adapter, RAID card, and pass-through board” on page 31
• “Hot-swap-drive backplane” on page 36
• “Installing the tape drive” on page 167
