Backplane for up to eight 2.5-inch drives

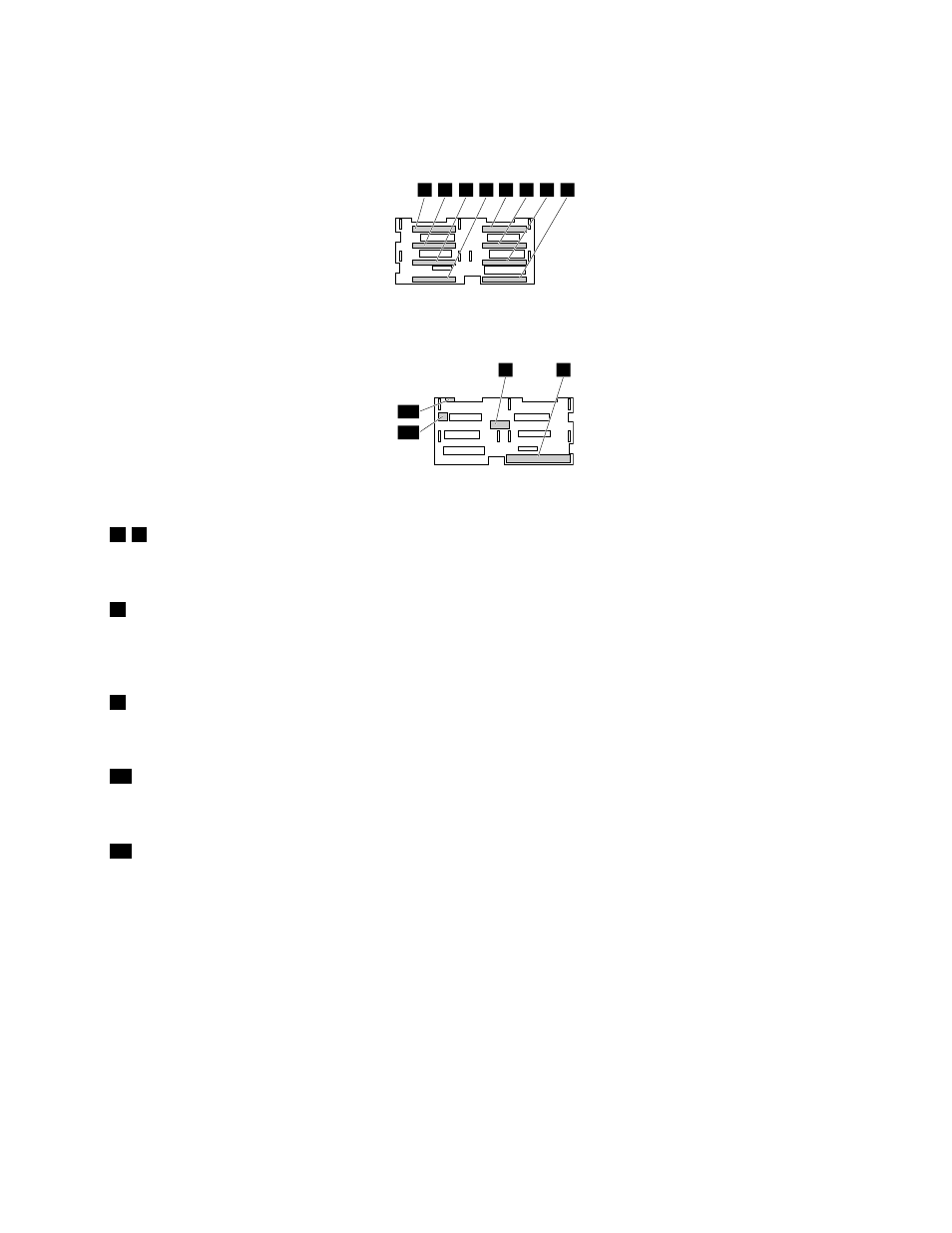

The following illustrations show the slots and connectors on the backplane for up to eight 2.5-inch drives.
0 1 2 3 4 5 6 7
Figure 26. Front view of the backplane for up to eight 2.5-inch drives
8 9
10
11
Figure 27. Rear view of the backplane for up to eight 2.5-inch drives
0 – 7 Slot 0–slot 7
Used to connect 2.5-inch drives.
8 10-pin power connector 0
Used to connect to the 10-pin backplane power connector on the system board or on the power distribution
board to provide power to the backplane.
9 AnyRAID adapter slot 0
Used to connect an AnyRAID adapter.
10 4-pin power connector
Used to connect to an internal tape drive if the server has one installed.
11 2-pin power connector
Used to connect to an optical drive if the server has one installed.
Chapter 3 . Product overview 41
