Lenovo ThinkServer RD650 User Manual
Page 35
Front view of server models with a slim optical drive
6
2
3
4
1
5
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

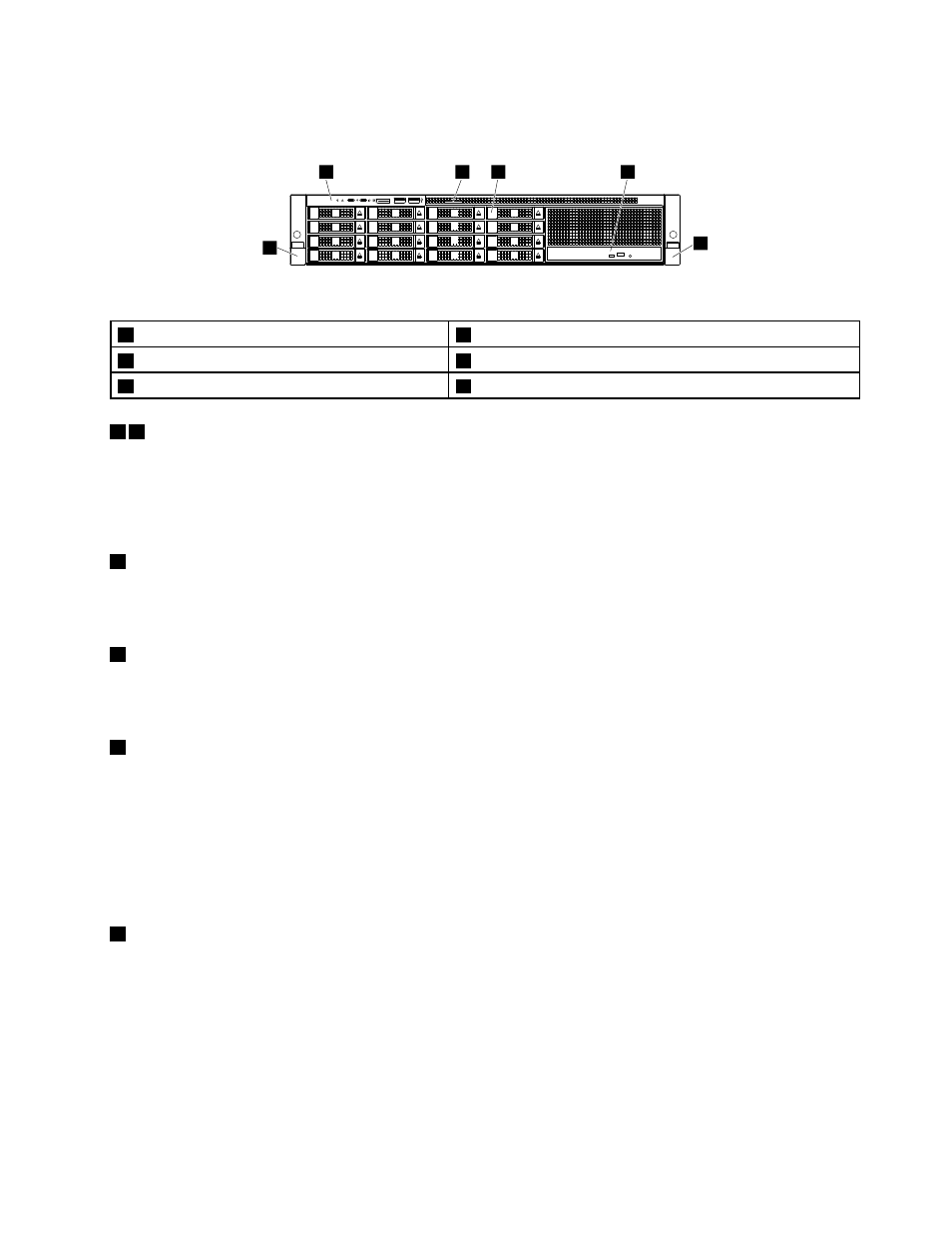

Figure 7. Front view of server models with a slim optical drive
1
Rack handle (left)
2
Front panel
3
Pull-out information card
4
2.5-inch-drive bays (0–15)
5
Slim optical drive (available on some models)
6
Rack handle (right)
1 6
Rack handles
If your server is installed in a rack cabinet, you can use the rack handles to help you slide the server out of
the rack cabinet. You also can use the rack handles and screws to secure the server in the rack cabinet so
that the server cannot slide out, especially in vibration-prone areas. For more information, refer to the Rack
Installation Instructions that comes with your server.
2
Front panel
For information about the controls, connectors, and status LEDs on the front panel, see “Front panel”
on page 23.
3
Pull-out information card
The machine type, model, and serial number label of the server is attached on the pull-out information card.
See “Machine type, model, and serial number label” on page 16.
4
2.5-inch-drive bays (0–15)
The EMI integrity and cooling of the server are protected by having all drive bays covered or occupied.
The number of the installed drives in your server varies by model. The vacant drive bays are occupied
by dummy trays.
When you install drives, follow the order of the drive bay numbers.
If the server supports up to eight drives, an EMI-protective panel covers the bays 8–15 as a whole.
5
Slim optical drive
Some server models come with a slim SATA optical drive (DVD-RW or DVD-ROM).
21
