2. Prepare your server. See “Removing or extending the server from the rack cabinet” on page 69.
3. Remove the server cover. See “Removing the server cover” on page 69.
4. Locate the AnyRAID adapter. See “Server components” on page 28.
5. Remove any parts and disconnect any cables that might impede your operation.
6. Press the two release tabs
1
and lift the flash module straight up and out of the AnyRAID adapter.
Note: If necessary, remove the AnyRAID adapter first for easier operation. Then, reinstall the AnyRAID
adapter. See “Replacing the AnyRAID adapter or the pass-through board” on page 101.

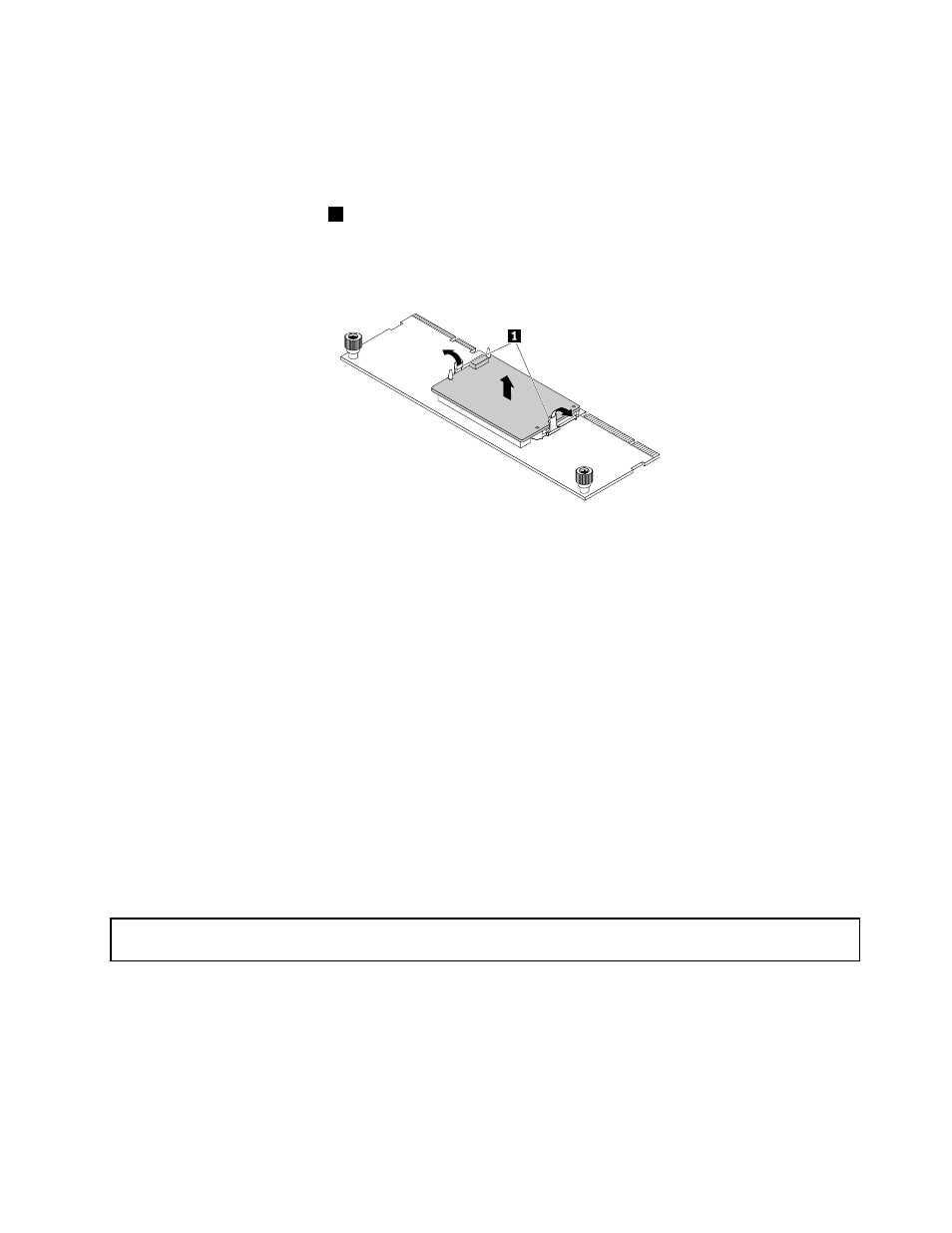

Figure 79. Removing the flash module
7. Reinstall any parts and reconnect any cables that you have removed.
8. If you are instructed to return the old flash module, follow all packaging instructions and use any
packaging materials that are supplied to you for shipping.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the removal procedure, go to “Completing the parts replacement” on page 183.
Installing or removing the Lenovo ThinkServer RAID 110i upgrade key
The Lenovo ThinkServer RAID 110i upgrade key (hereinafter referred to as RAID 110i key) activates RAID 5
for the onboard SATA software RAID. As a result, the capability of the system board is expanded. You can
purchase a RAID 110i key from Lenovo and install it to the RAID upgrade key connector on the system board.
For a list of ThinkServer options, go to:
Installing the RAID 110i key
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 67.
Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
Note: Use any documentation that comes with the RAID 110i key and follow those instructions in addition to
the instructions in this topic.
To install the RAID 110i key, do the following:
.
