11. Remove the plastic microprocessor socket cover. Store the microprocessor socket cover in the event
that you later remove the microprocessor and need the socket cover to protect the pins on the socket.
Note: Do not remove the socket cover until you install a microprocessor into the socket. If you remove
the microprocessor, install the socket cover or a new microprocessor in the first place.

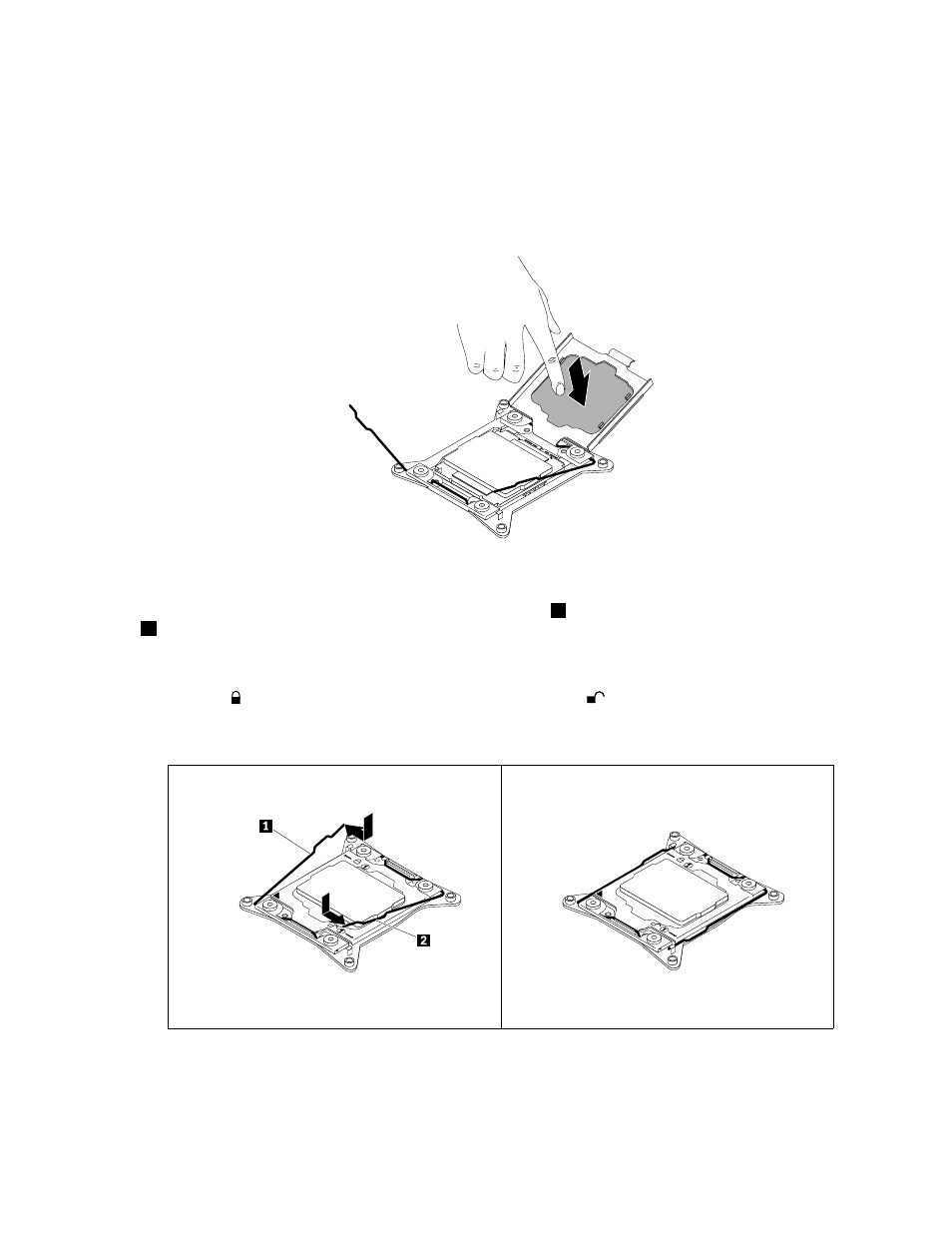

Figure 102. Removing the microprocessor socket cover
12. Close the microprocessor retainer. Close the small handle
1
first and then close the small handle
2
. Ensure that the retainer is locked into position and the new microprocessor is securely seated in
the socket.
Note: There are two marks on the microprocessor retainer. Ensure that you close the small handle
marked with
first and then close the small handle marked with
. Always follow the correct sequence
when you close the small handles.
Figure 103. Securing the microprocessor in the socket
13. Install the new heat sink that comes with the microprocessor option kit. See “Installing or replacing a
.
