Lenovo ThinkServer RAID 720i AnyRAID Adapter

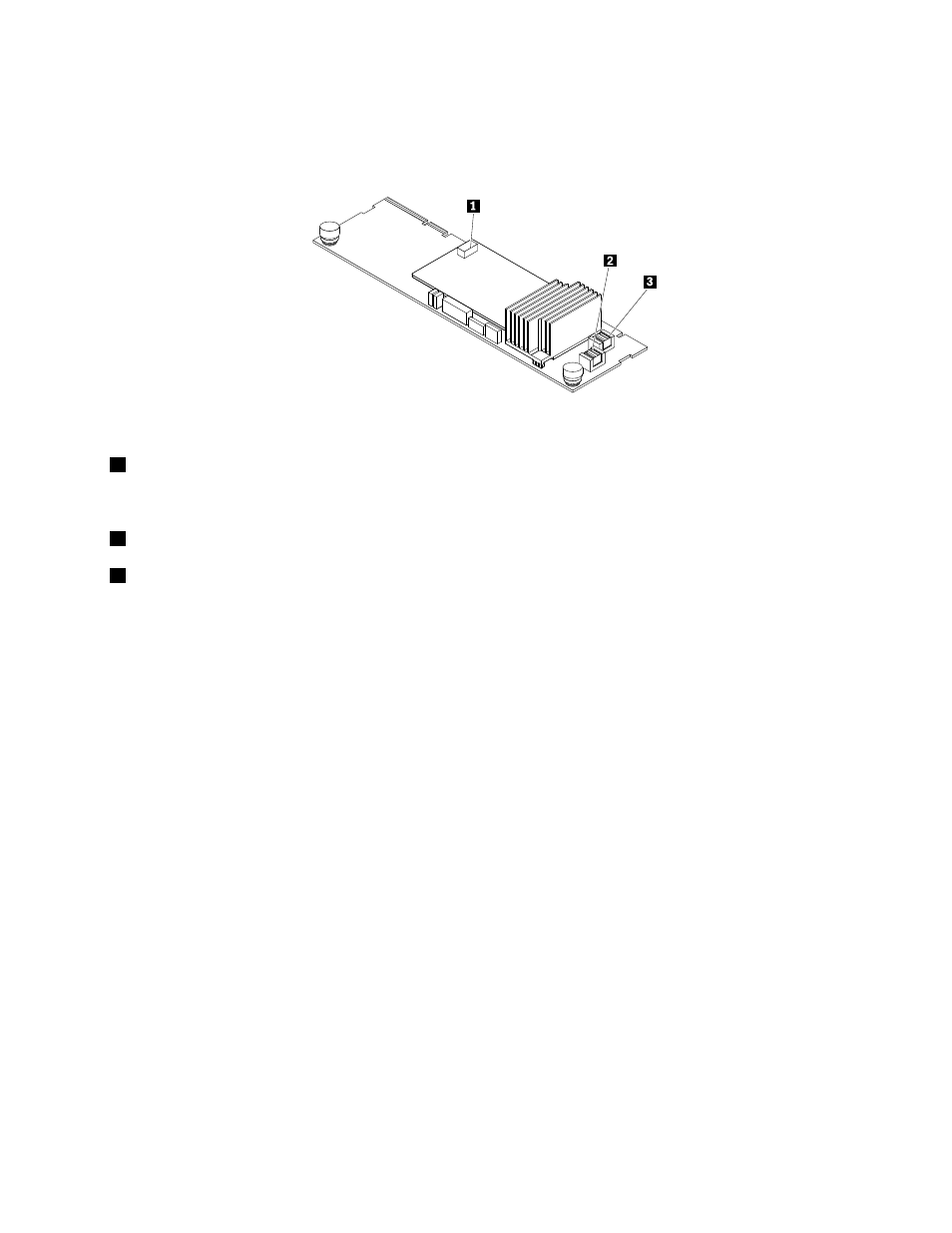

The following illustration shows the connectors on the Lenovo ThinkServer RAID 720i AnyRAID Adapter.
Figure 16. ThinkServer RAID 720i AnyRAID Adapter
1 ThinkServer RAID Super Capacitor Module connector (available on some models)
Used to connect to the ThinkServer RAID Super Capacitor Module. See “Server components” on page 28.
2 PCIE 0 connector
3 PCIE 1 connector
Used to connect to the AnyRAID connector 0–1 on the system board. See “System board components”
on page 43.
