Lenovo ThinkServer RD650 - Manual (Page 169)

6. Remove the screw that secures the front panel board. Then open the retaining handle as shown by
pivoting it to the front of the server.

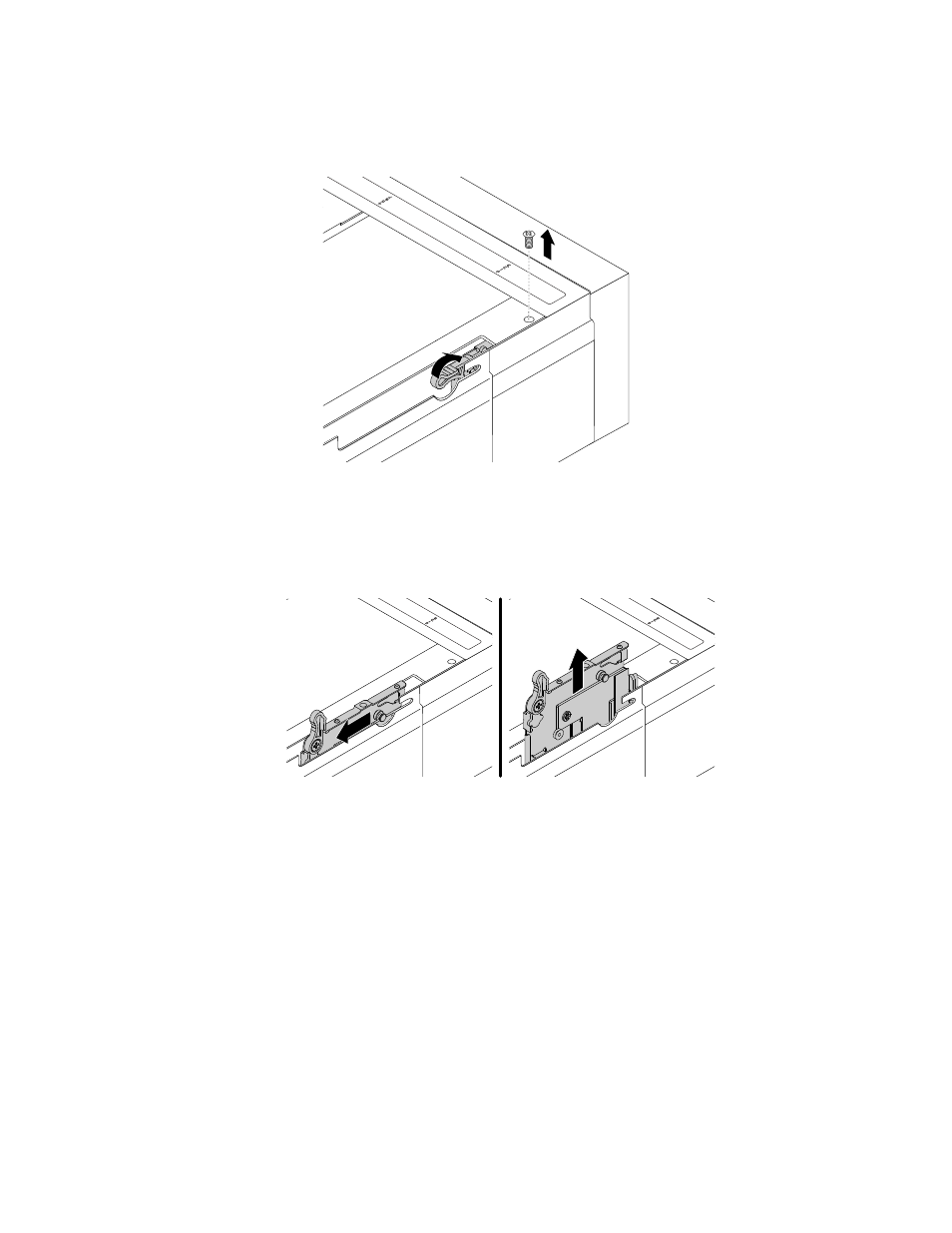

Figure 143. Releasing the front panel board from the secured position
7. Carefully slide the front panel board to the rear of the server and then lift it straight up and out of
the chassis.
Figure 144. Removing the front panel board
8. Touch the static-protective package that contains the new front panel board to any unpainted surface
on the outside of the server. Then, take the new front panel board out of the package.
Note: Carefully handle the front panel board by its edges.
Chapter 6 . Replacing hardware 155
