• Depending on the specific type, your AnyRAID adapter and the flash module might look different from

the illustration in this topic.

To install the flash module, do the following:

1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all

power cords from electrical outlets and disconnect all cables that are connected to the server.

4. Locate the AnyRAID adapter. See “Server components” on page 28.

5. Remove any parts and disconnect any cables that might impede your operation.

6. Position the flash module above the AnyRAID adapter and align the two holes in the flash module with the

two pins on the AnyRAID adapter. Then, lower the flash module straight down until it is securely seated.

Note: If necessary, remove the AnyRAID adapter first for easier operation. Then, reinstall the AnyRAID
adapter. See “Replacing the AnyRAID adapter or the pass-through board” on page 101.

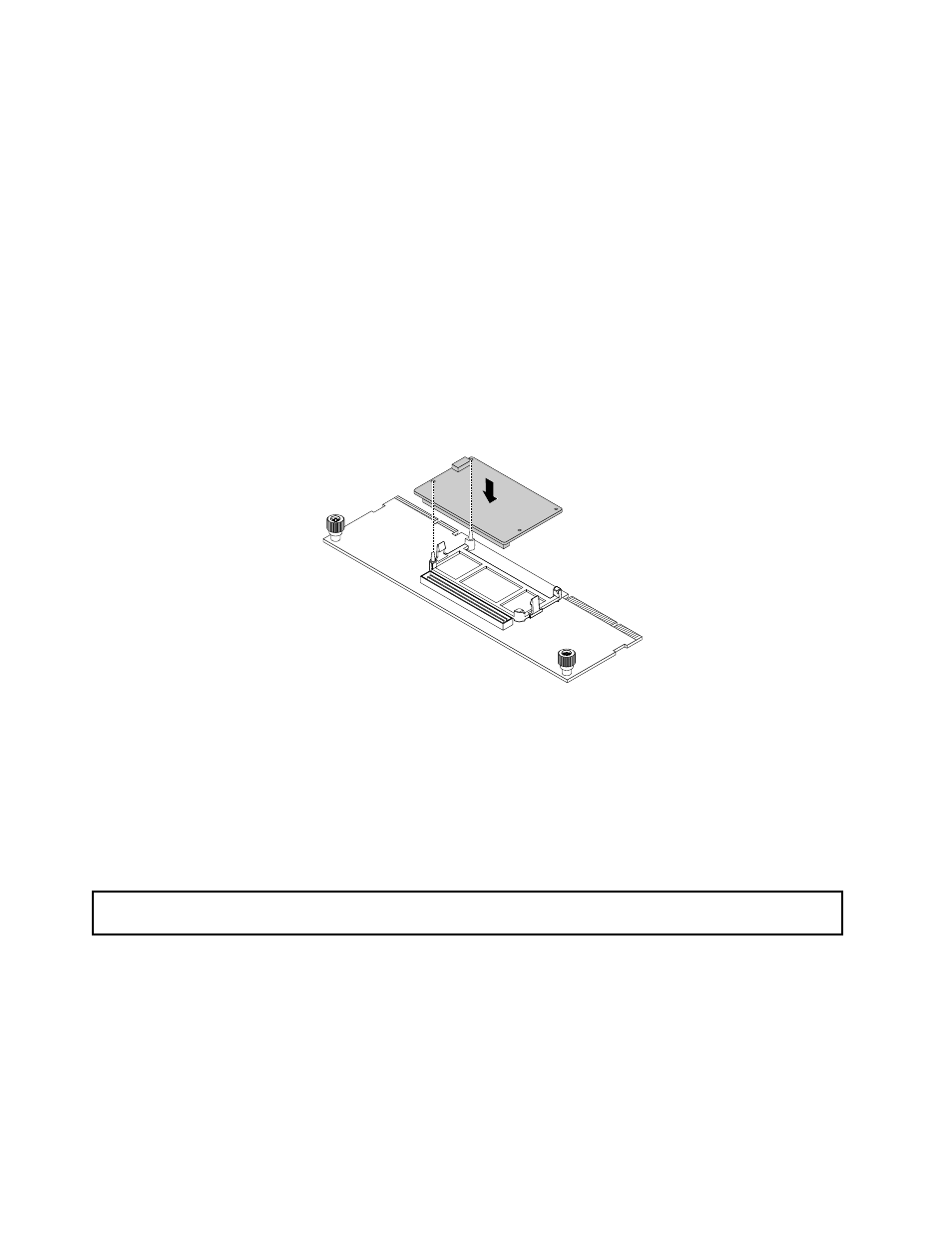

Figure 78. Installing the flash module

7. Reinstall any parts and reconnect any cables that you have removed.

What to do next:

• To work with another piece of hardware, go to the appropriate section.

Removing the flash module

Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 67.

Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.

Note: Depending on the specific type, your AnyRAID adapter and the flash module might look different
from the illustration in this topic.

To remove the flash module, do the following:

1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all

power cords from electrical outlets and disconnect all cables that are connected to the server.
