Lenovo ThinkServer RAID 110i pass-through board

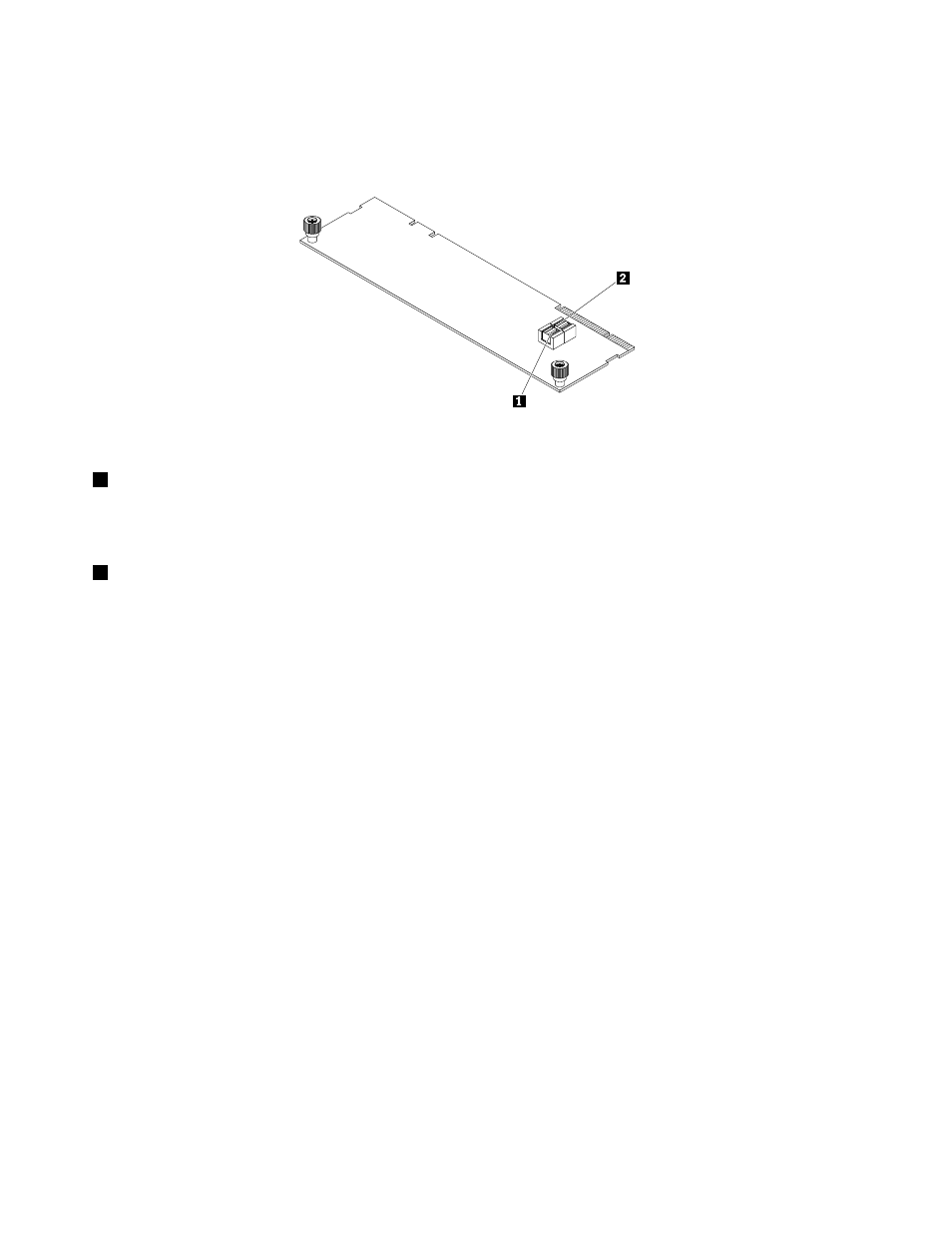

The following illustration shows the connectors on the Lenovo ThinkServer RAID 110i pass-through board.

Figure 19. Lenovo ThinkServer RAID 110i pass-through board

1

SATA 0–3 connector

Used to connect to the SATA connector 0 (ports 0–3) on the system board. See “System board components”
on page 43.

2

SATA 4–7 connector

Used to connect to the SATA connector 1 (ports 4–7) on the system board. See “System board components”
on page 43.

Hot-swap-drive backplane

Your server comes with one of the following drive bay and backplane configurations:

36

ThinkServer RD650 User Guide and Hardware Maintenance Manual
