11. Note the orientation of the new microprocessor. Hold the new microprocessor by its edges and align
the notches
1
on it with the tabs
2
in the microprocessor socket. Then, carefully lower the new
microprocessor straight down into the microprocessor socket.
Note: The small triangle
3
on one corner of the new microprocessor is the microprocessor orientation
indicator. The new microprocessor is in the correct orientation when this indicator faces the beveled
corner
4
of the microprocessor socket.

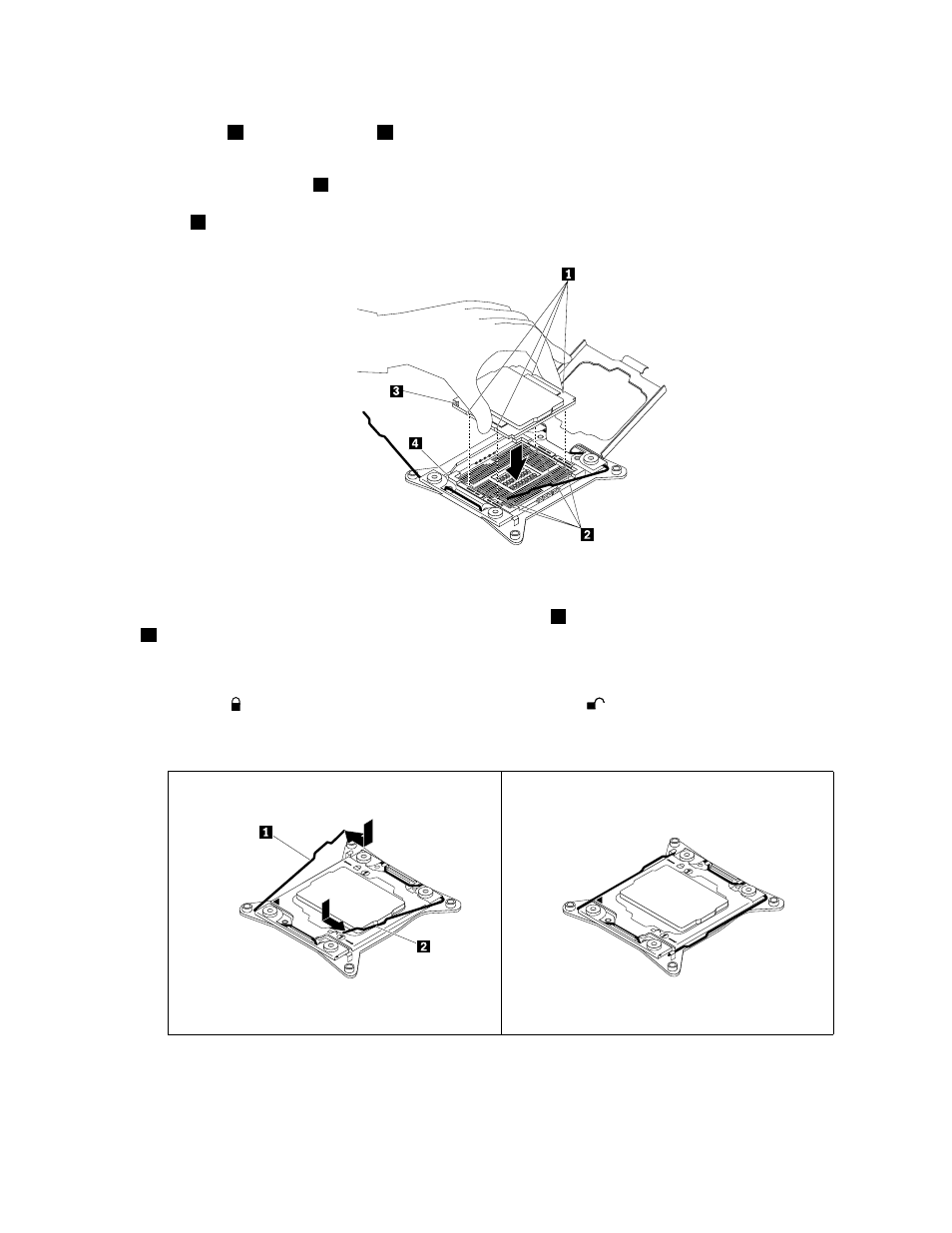

Figure 108. Installing the microprocessor
12. Close the microprocessor retainer. Close the small handle
1
first and then close the small handle
2
. Ensure that the retainer is locked into position and the new microprocessor is securely seated in
the socket.
Note: There are two marks on the microprocessor retainer. Ensure that you close the small handle
marked with
first and then close the small handle marked with
. Always follow the correct sequence
when you close the small handles.
Figure 109. Securing the microprocessor in the socket
13. Use a cleaning pad to wipe the thermal grease from the removed heat sink. Dispose of the cleaning
pad after all of the thermal grease is removed.
.
