1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all
power cords from electrical outlets and disconnect all cables that are connected to the server.
2. Prepare your server. See “Removing or extending the server from the rack cabinet” on page 69.
3. Remove the server cover. See “Removing the server cover” on page 69.
4. Remove the riser card assembly 1. See “Replacing the riser card” on page 85.
5. Locate the AnyFabric adapter connector on the system board. See “System board components”
on page 43.
6. Remove the metal shield that protects the AnyFabric adapter bay. Store the shield in the event that you
later remove the AnyFabric adapter and need the shield to cover the bay.

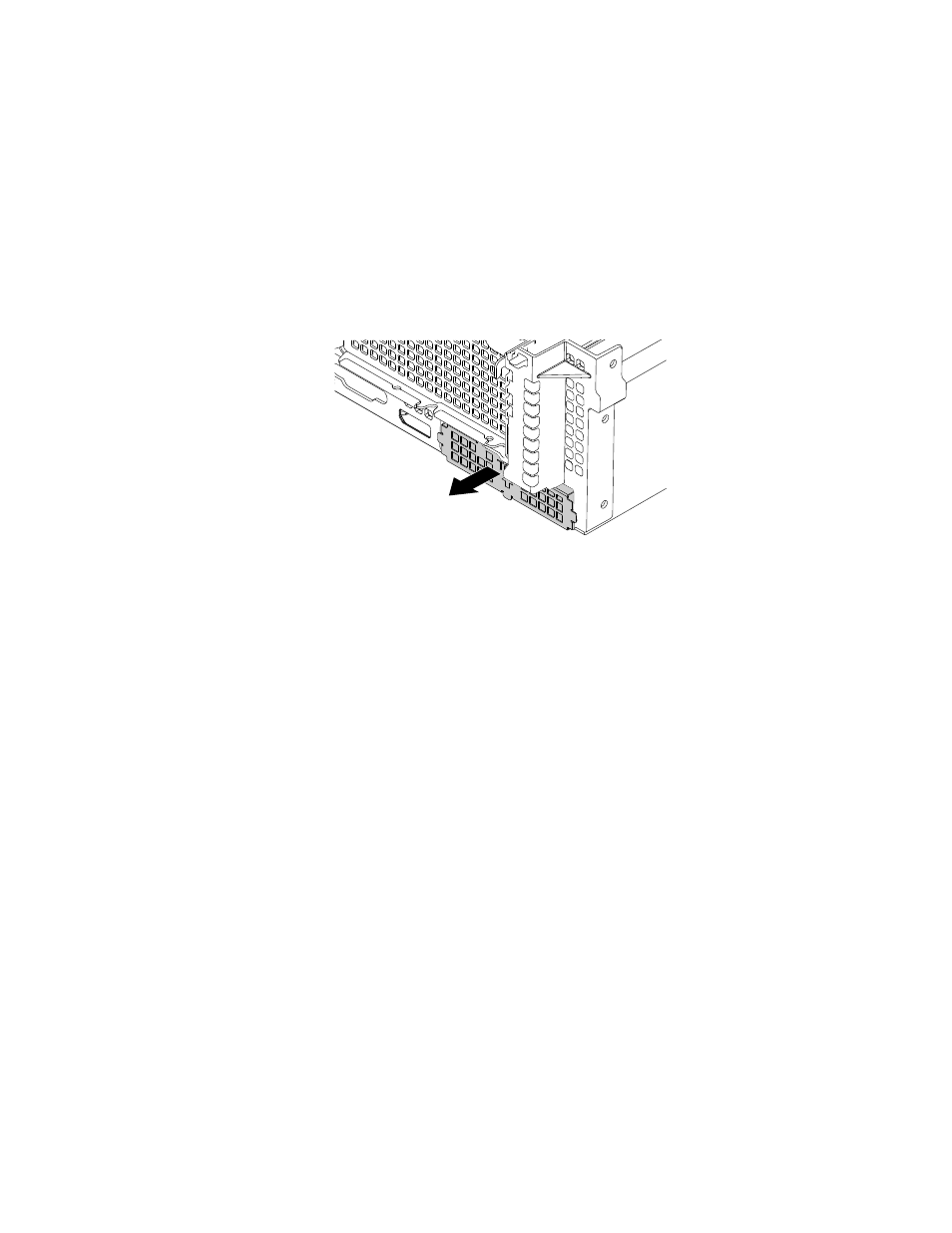

Figure 90. Removing the protective shield for the AnyFabric adapter bay
7. Touch the static-protective package that contains the AnyFabric adapter to any unpainted surface on
the outside of the server. Then, take the AnyFabric adapter out of the package.
Note: Carefully handle the AnyFabric adapter by its edges.
Chapter 6 . Replacing hardware 117
