9. Pivot the card latch to the closed position to secure the PCIe card in position.

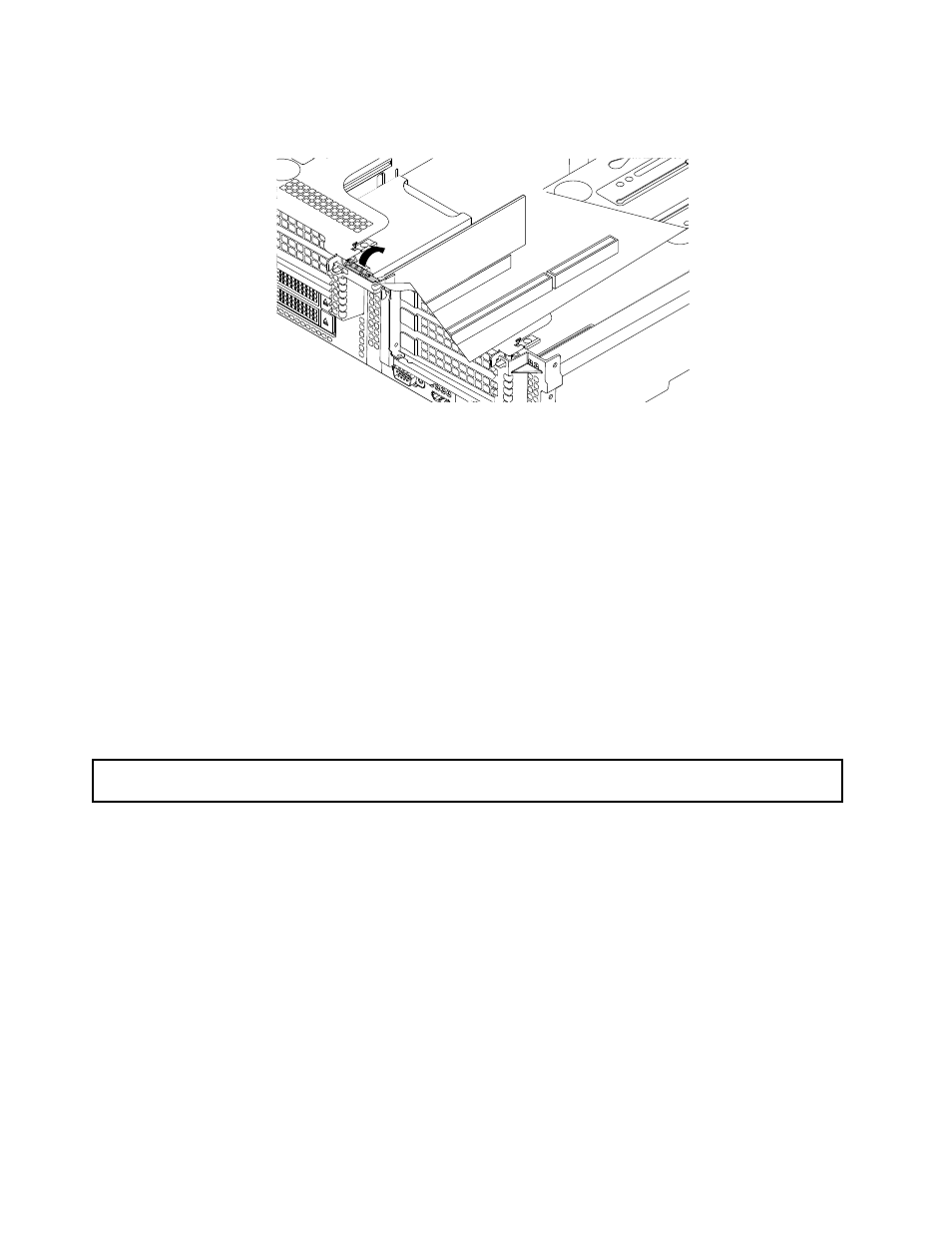

Figure 71. Pivoting the card latch to the closed position
10. Depending on the type of the PCIe card, you might need to connect any required cables. Refer to the
documentation that comes with the PCIe card for specific information.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation, go to “Completing the parts replacement” on page 183. Then, continue with
the following procedure to install the PCIe card driver if required.
Removing a PCIe card
This topic contains the following information:
• “Removing a PCIe card from the riser card assembly” on page 98
• “Removing a PCIe card from the system board” on page 100
Removing a PCIe card from the riser card assembly
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 67.
Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
Notes:
• Depending on the specific type, the PCIe card might look different from the illustrations in this topic.
• Use any documentation that comes with the PCIe card and follow those instructions in addition to
the instructions in this topic.
The following procedure is based on the scenario that you want to remove a full-height, half-length PCIe
card installed on the riser card. The procedure is similar if you want to remove a full-height, full-length
PCIe card installed on the riser card.
To remove a PCIe card from the riser card assembly, do the following:
1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all
power cords from electrical outlets and disconnect all cables that are connected to the server.
98 ThinkServer RD650 User Guide and Hardware Maintenance Manual
